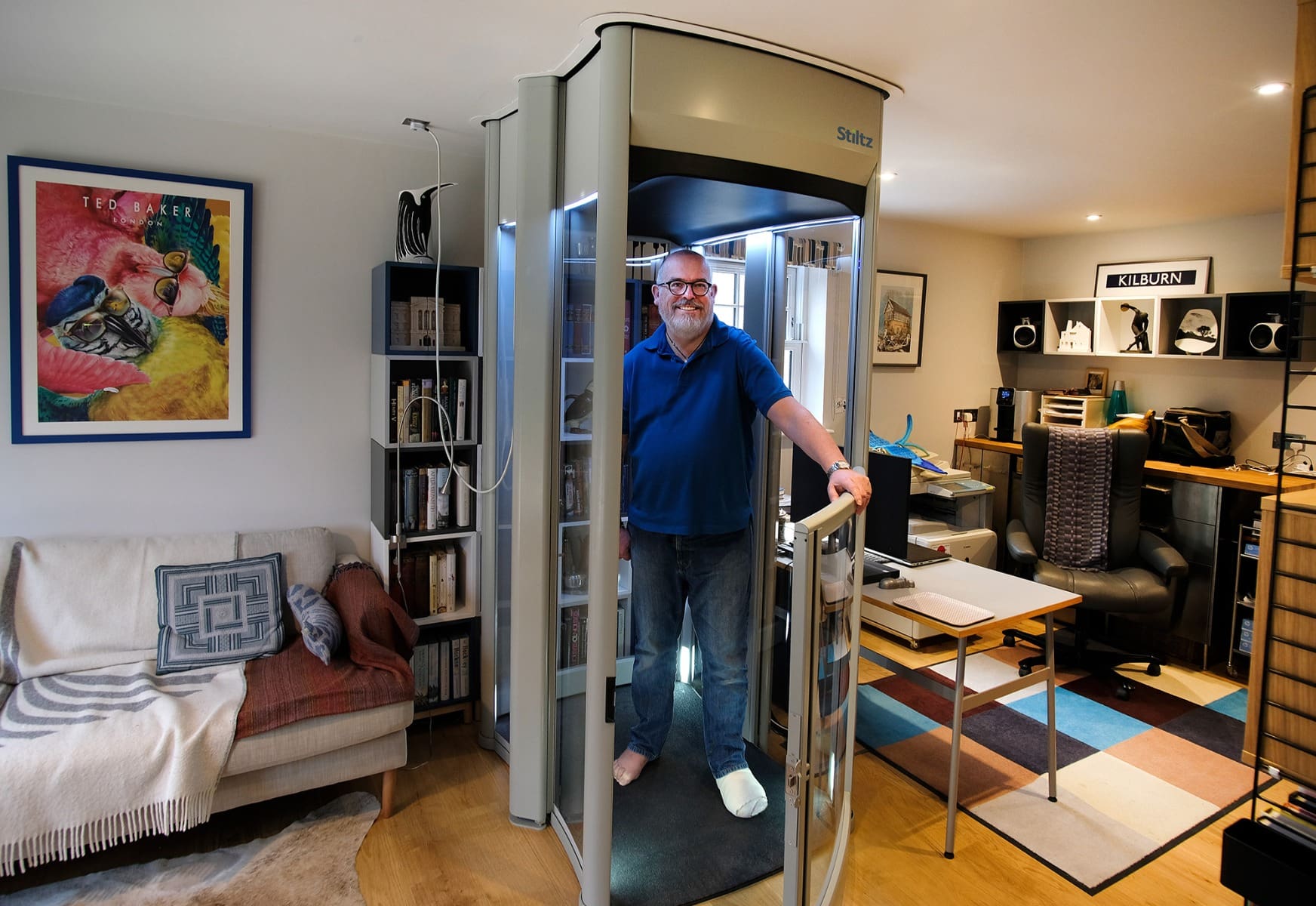

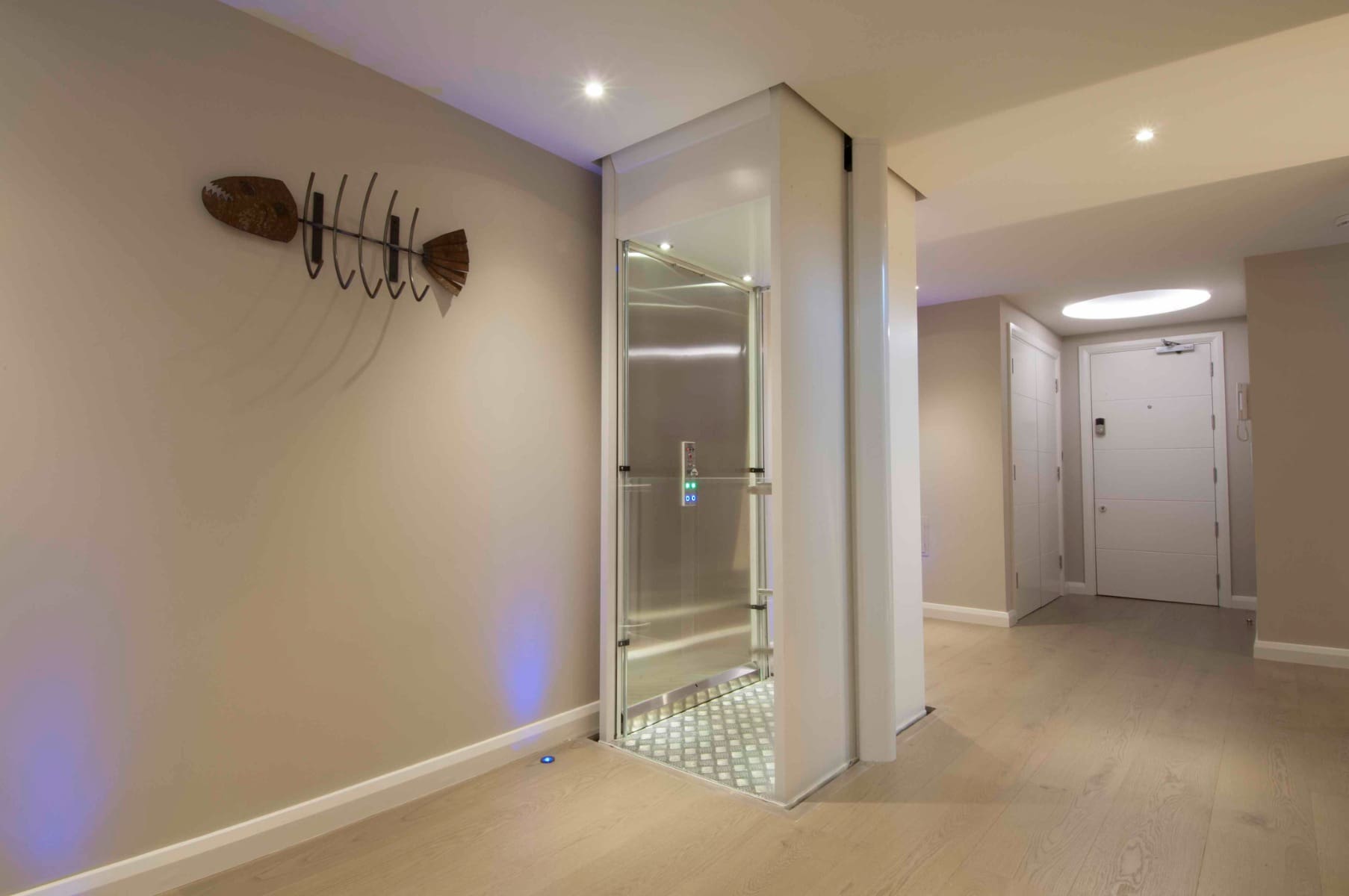

Trio Wheelchair Elevator by Stiltz Homelifts
The Trio Wheelchair Elevator by Stiltz Homelifts is a spacious and reliable home lift designed for wheelchair users and those who need extra room. Additionally, it supports walking frames and caregivers. As a result, it helps users move freely and live independently at home.
Many homes need better accessibility solutions. Therefore, the Trio Wheelchair Elevator offers a wider and deeper cabin than standard models. In addition, it provides a smooth and safe way to travel between floors.
Key Benefits of Trio Wheelchair Elevator
- Fits a wheelchair or up to three people
- Compact footprint (under 13.5 sq. ft.)
- Quiet electric motor (no hydraulics)
- Fast installation, often in one day
- Plugs into a standard home outlet
- Self-supporting structure with no shaft required
Spacious & Wheelchair-Friendly Design

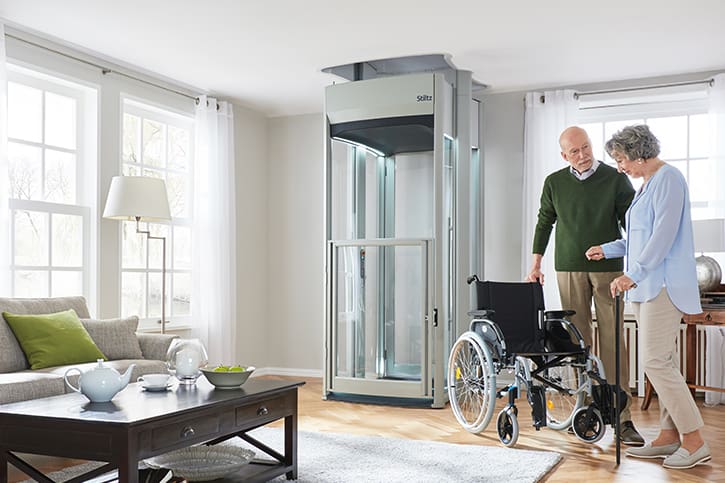

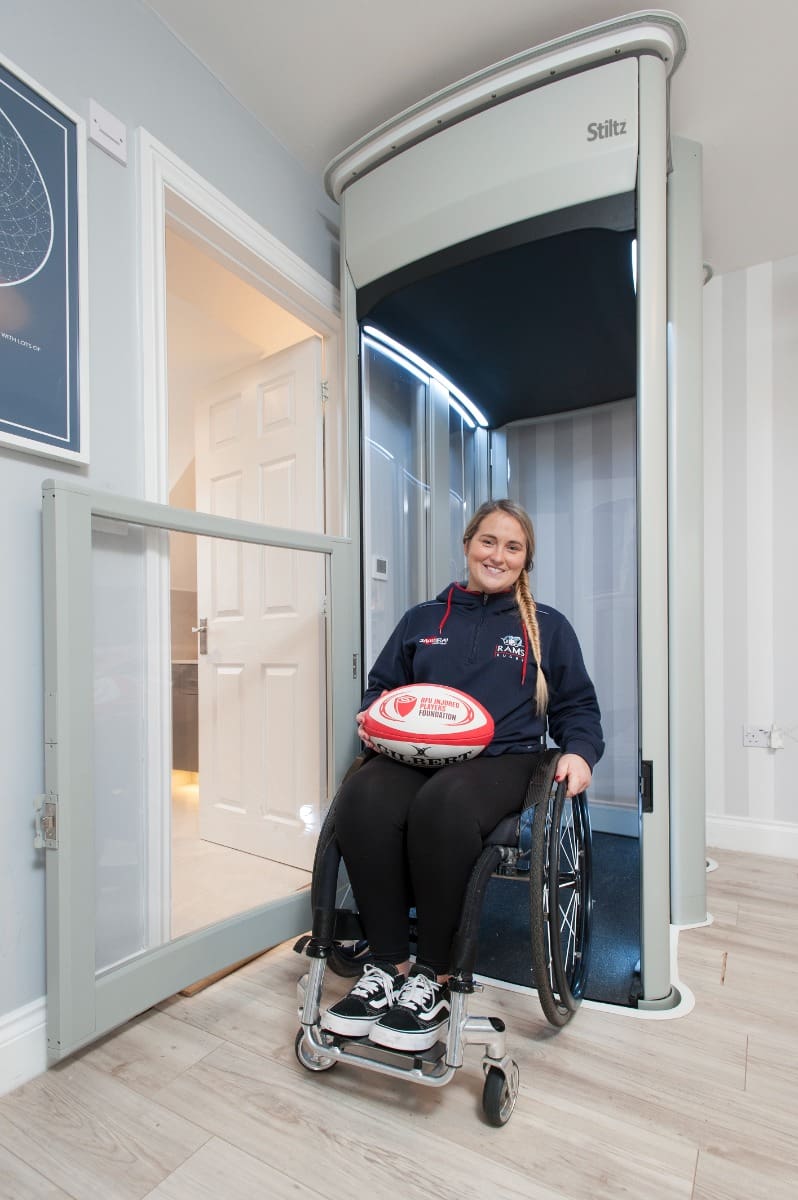

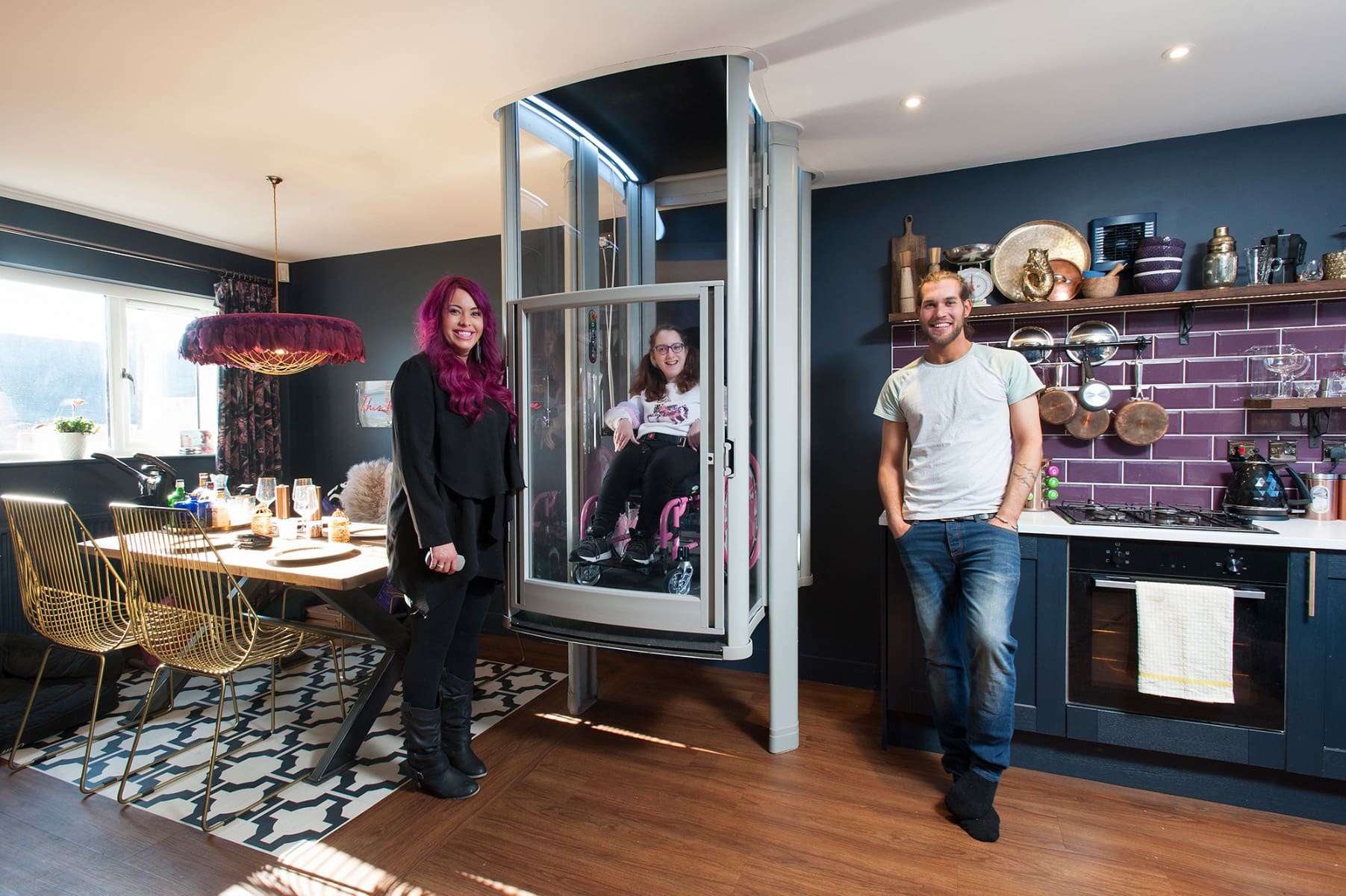

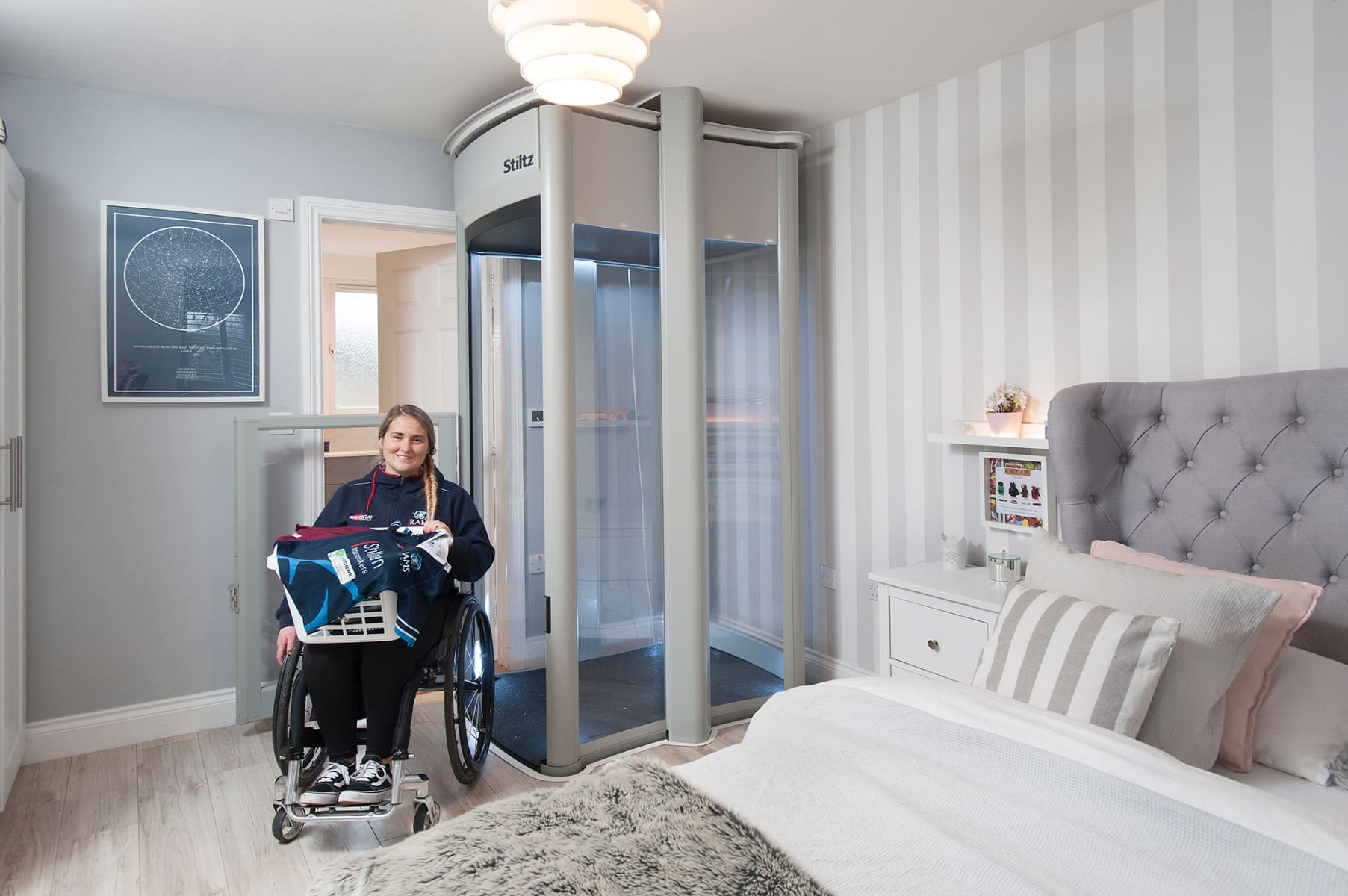

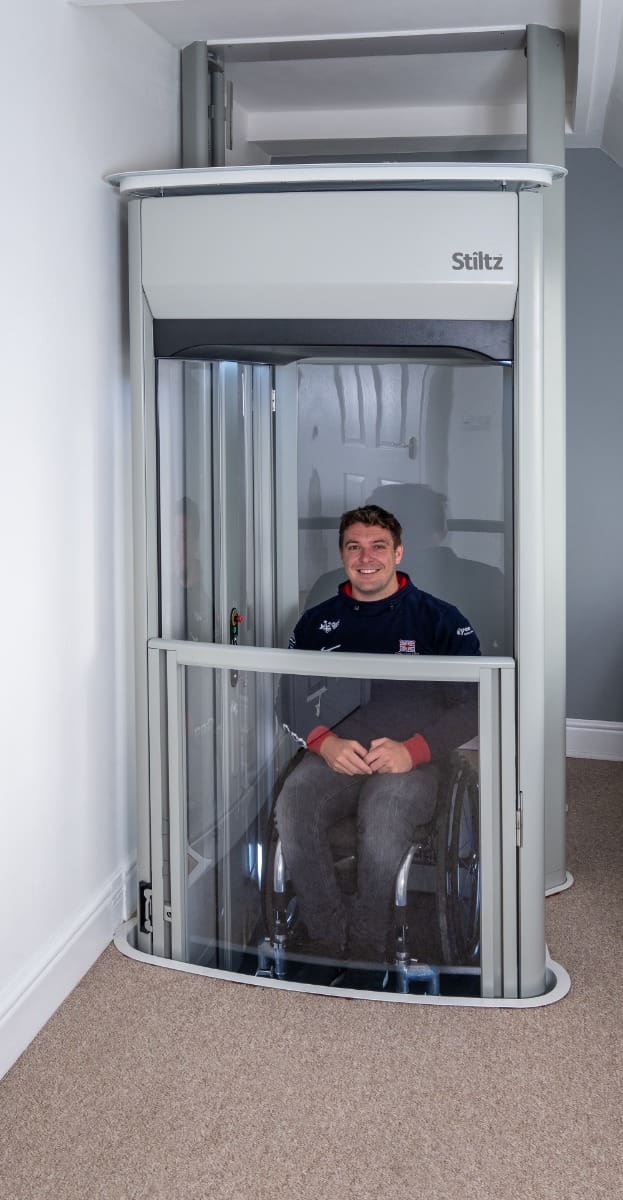

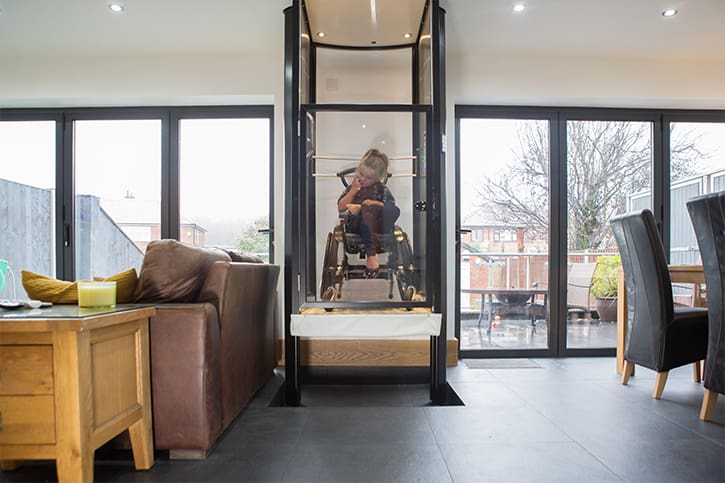

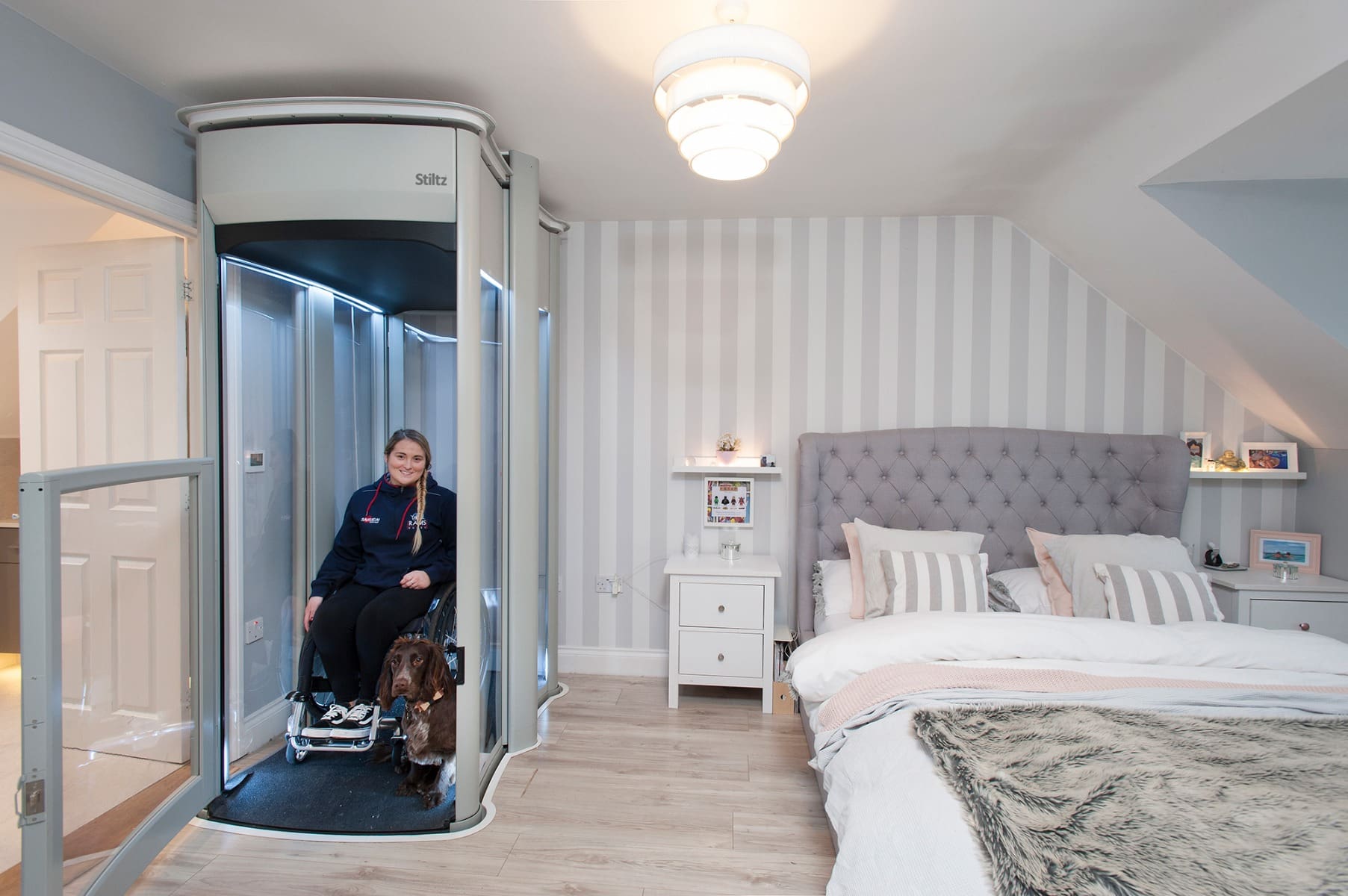

The Trio Wheelchair Elevator gives users more space. For example, it fits a full-size wheelchair with room for a caregiver. As a result, transfers become easier and safer.
Additionally, the larger cabin allows you to carry items like groceries or luggage. Therefore, it supports both mobility and daily tasks.
Easy Installation & Flexible Placement

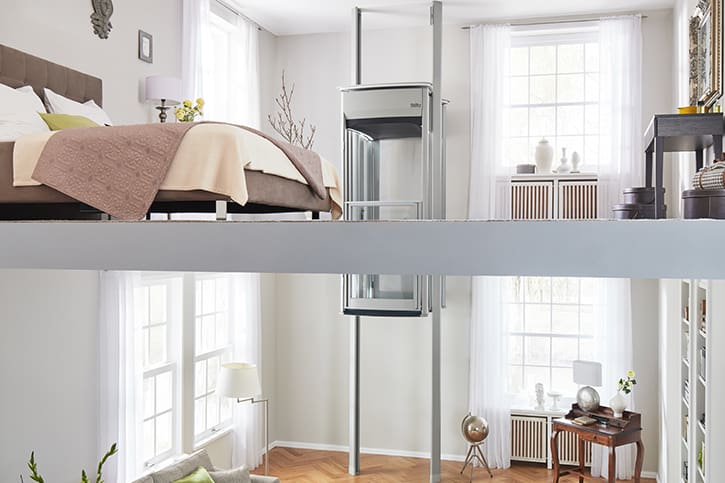

The Trio Wheelchair Elevator installs quickly and easily. For example, it does not require a shaft, pit, or machine room. As a result, installers can place it in many areas of the home.
Moreover, it uses a dual rail system that supports the lift without walls. In addition, this design allows flexible placement in living rooms, bedrooms, or hallways.
Power & Performance
This elevator runs on a built-in drive system. For example, it plugs into a standard household outlet. As a result, it works like any other appliance.
Additionally, the motor operates quietly. Therefore, users enjoy smooth and comfortable travel.
Stiltz Trio Elevator Models

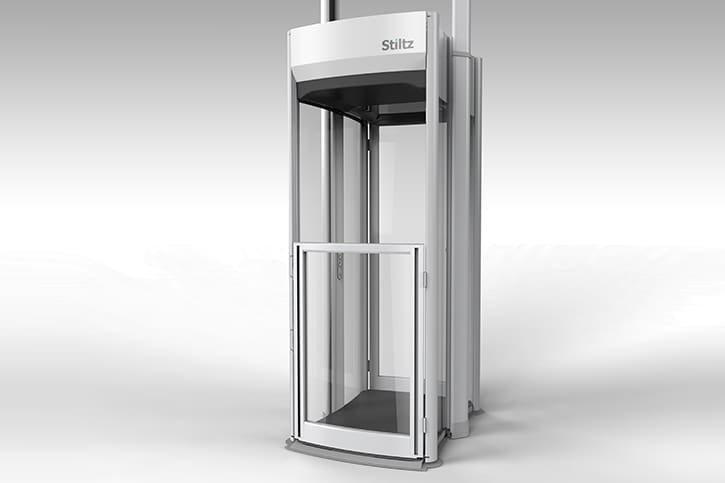

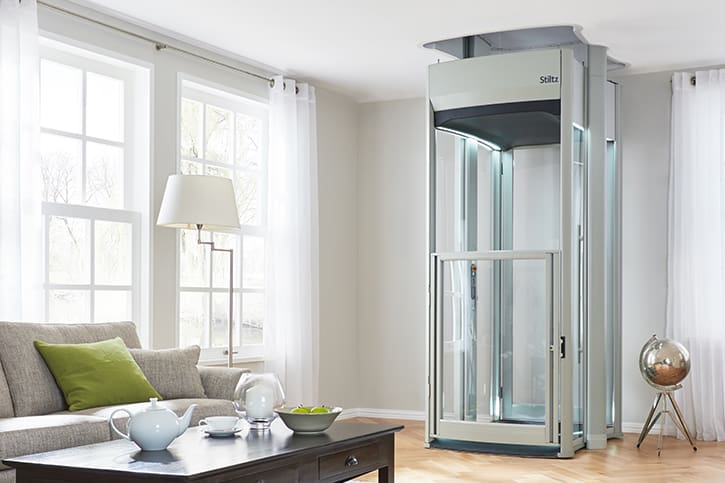

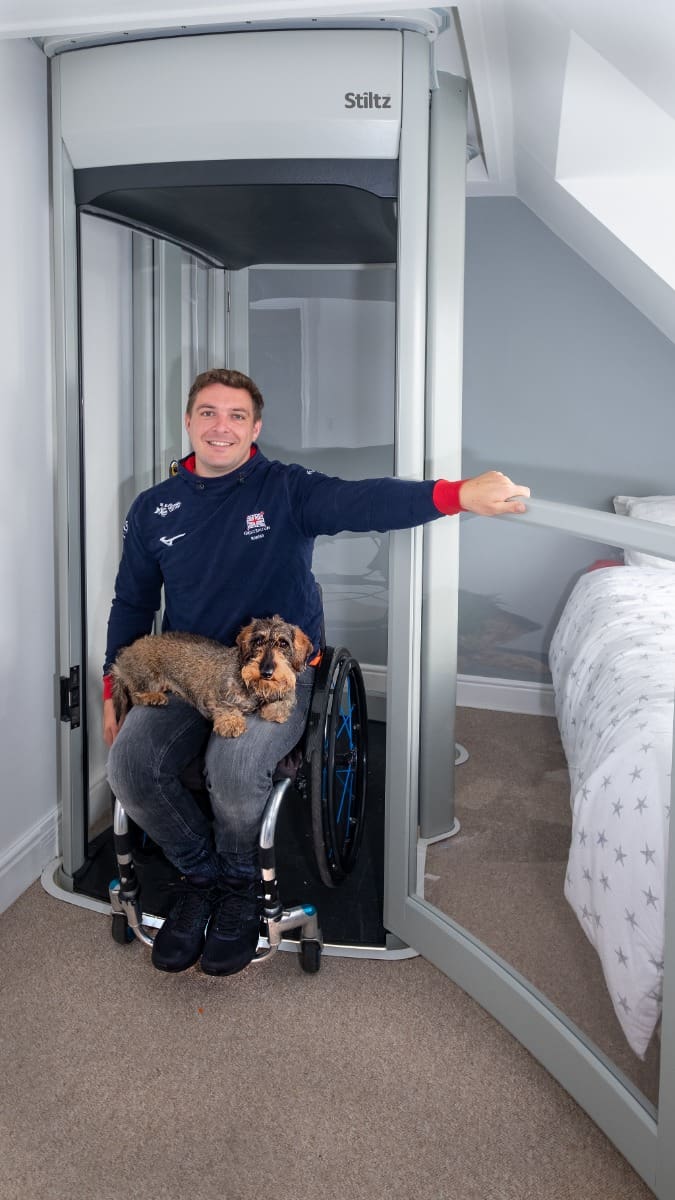

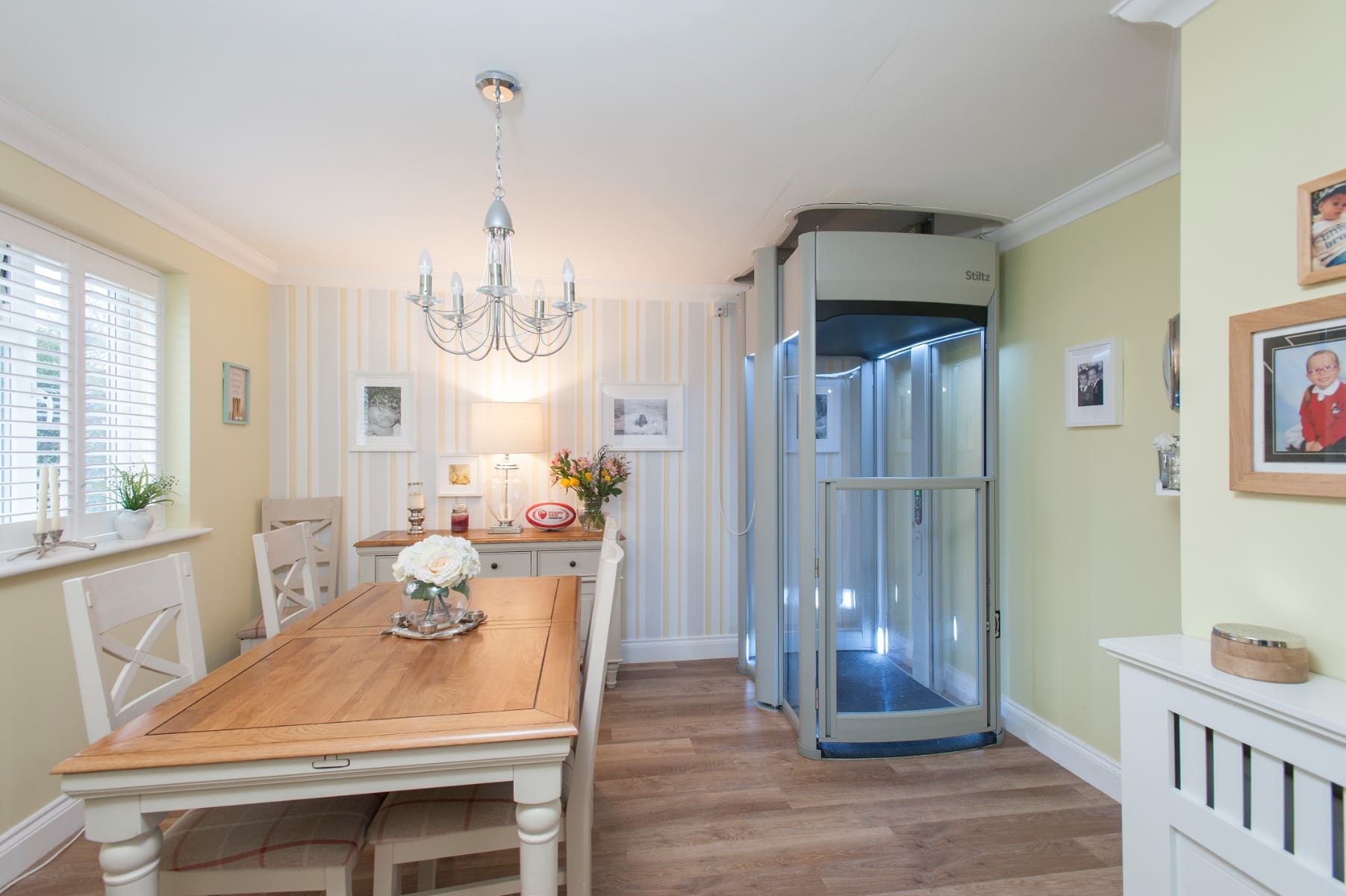

- Trio Alta โ Spacious design with clear sides for a bright, modern look

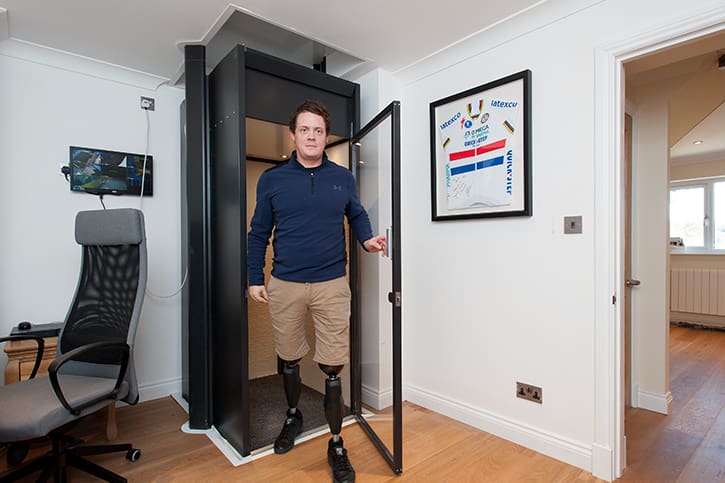

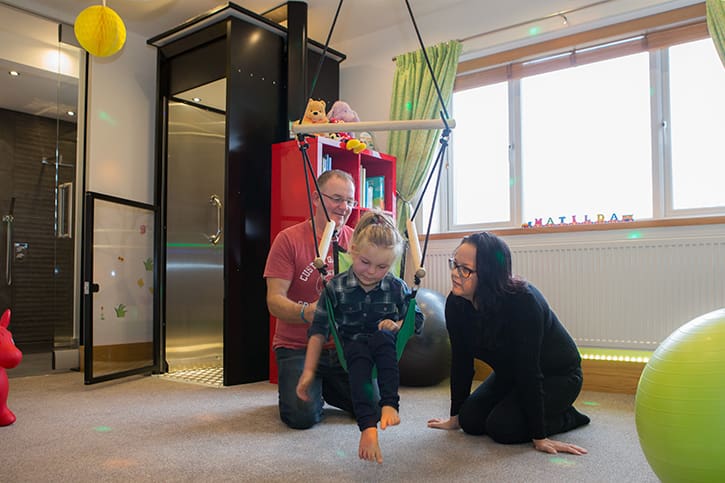

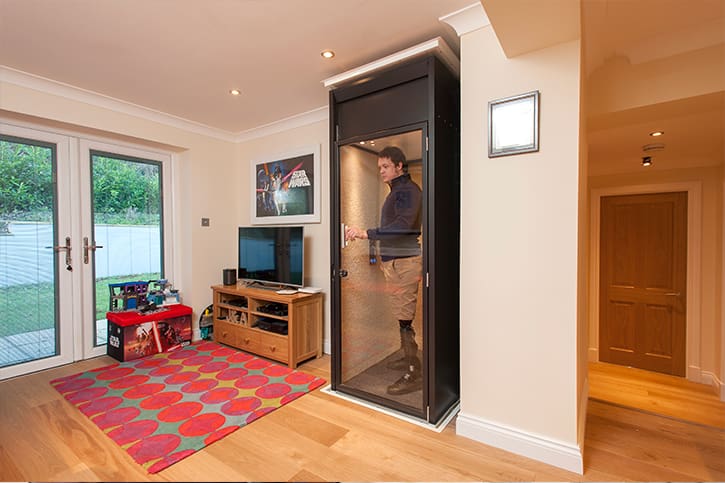

- Trio Thru Car โ Allows entry and exit from both sides for flexible layouts
Standard Features
- Carries up to 3 people or a wheelchair user with helper
- Light grey finish (Trio Alta)

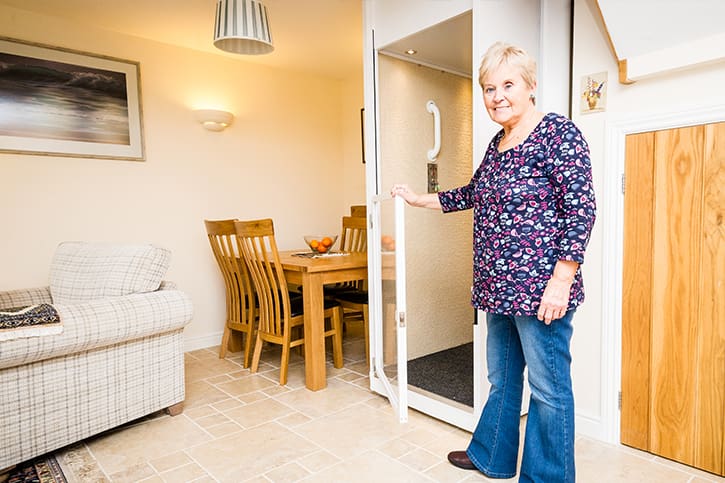

- Half-height interlocked door

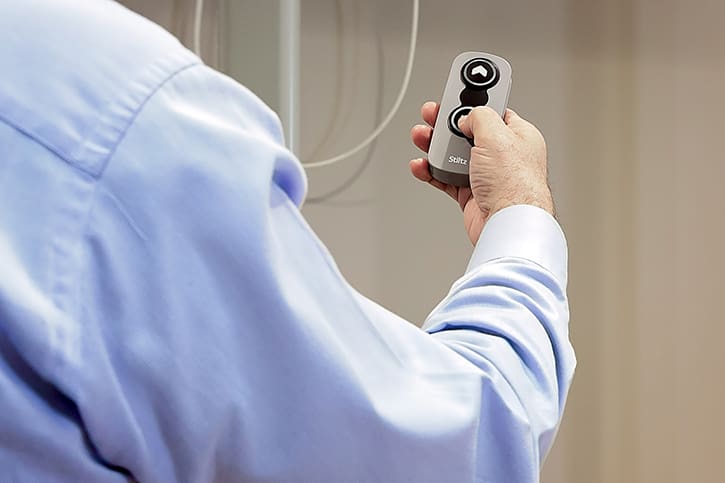

- Two remote controls

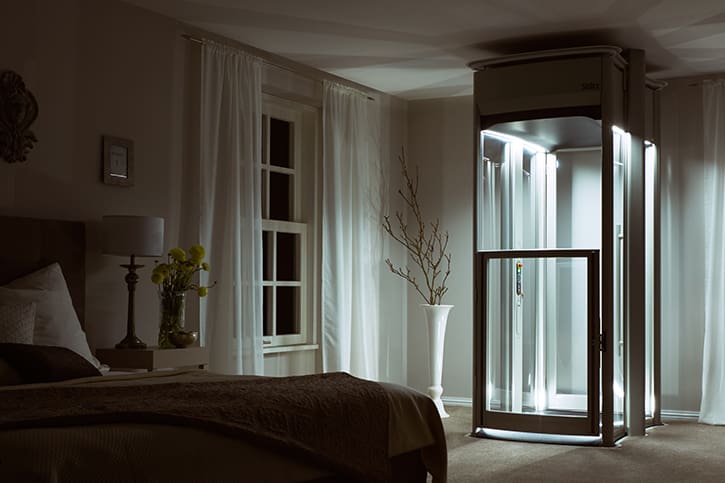

- LED interior lighting
- Battery backup system
- Interior telephone
- Two-year parts warranty
Optional Features
- Fold-down seat
- Interior grab rail
- Custom colors and finishes
- Full-height door
Safety Features
The Trio Wheelchair Elevator includes advanced safety systems. For example, the light curtain stops the lift if it detects an obstruction. As a result, users stay protected during operation.
Additionally, sensors monitor movement and balance. Therefore, the lift stops immediately if something is wrong.
Key safety features include:
- Light curtain obstruction sensor

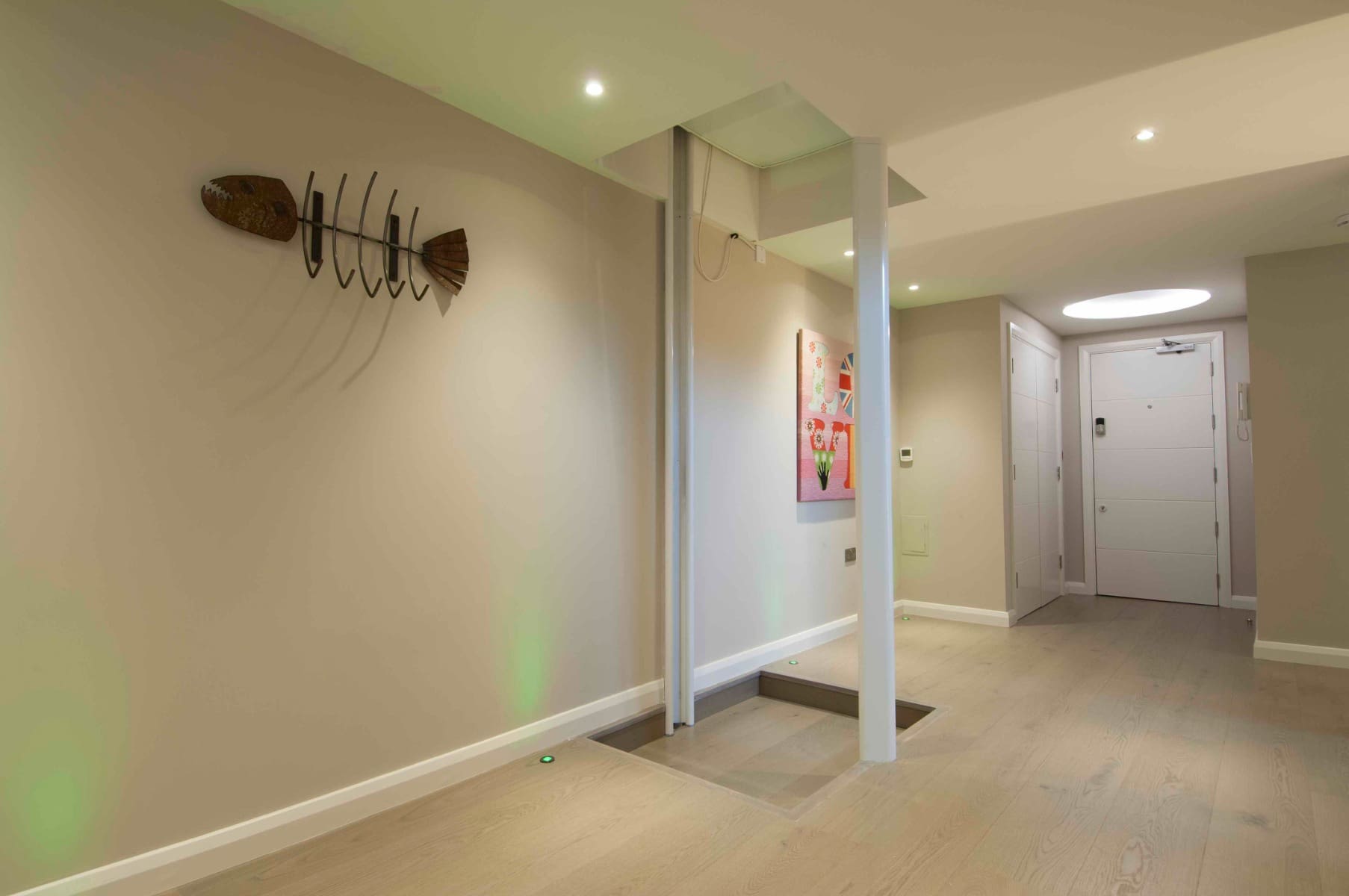

- Safety lid cover for floor opening

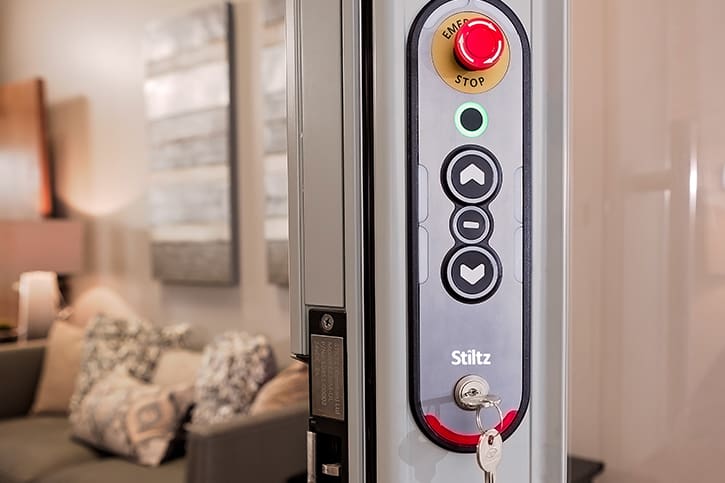

- Key switch control
- Emergency stop button
- Top and bottom safety sensors
- Load and balance sensors
- Fall arrest system
Why Choose the Trio Wheelchair Elevator
The Trio Wheelchair Elevator by Stiltz Homelifts offers a safe and modern solution for home accessibility. Additionally, it combines space, comfort, and performance. As a result, it is ideal for wheelchair users and families planning for long-term independence.
To guarantee safe and comfortable operation at all times, each Stiltz Homelift is equipped with the following safety features as standard:
- A smart LED light curtain can detect obstacles and gently bring the lift to a stop if the light is crossed. This feature is standard across our entire range of lifts.
- The lift will only move when the lift car door is fully closed.
- Sensors positioned in the top and bottom of the lift will automatically stop the lift car immediately an obstruction is detected.
- The lift has a built-in braking mechanism for safety and comfort.
- In the event of power failure, the lift car can be returned to the lower floor thanks to a battery backup located within the drive unit.
- A built-in load sensor ensures that the maximum weight limit is not exceeded.
- The lift car door is secured by a strong locking mechanism which is also very easy to open and close.
Specifications:
Stiltz lifts are inherently simple in design and concept but if you wish to dig a little deeper, you can see all of the information you need below:
| Drive | Roped drum, braked gear motor drive |
| Power Supply | 230V AC | 5 amps โย ย โ will work off 110v with step-up transformer |
| Maximum Load | Trio Alta | 250kg | 39st | 550lbs Trio Classic | 220kgย | 35st | 485lbs |
| Maximum Travel | Up to 6.0 Metres |
| Entrance Security | Half height light curtain / obstruction sensor โ optional full height door |
| Maximum Speed | 15cm / Second |
| Warranty | 2 year parts warranty |
| Rope Diameter | 6mm galvanised steel rope |
| Additional Sensors | Out-of-balance & overload detection and light curtain |
| Lighting Type | 4 x 3w LED downlights |
| Landing Call Stations | 2 Wireless remote control units โ call / send facility (3 x standard aaa batteries in each) |
| Installation | Typical installation takes two days |
| Operation | Hold-to-run controls |
| Configuration | Single entry or double entry / ThruCar |
Stiltz Trio Wheelchair Elevator Footprints
Stiltz Customer Warranty:ย
Every Stiltz Homelift comes with a 24-month parts warranty to protect our customers against issues in manufacturing workmanship, parts quality or lift assembly.
The parts warranty begins the day the lift installation is complete and the elevator is handed over to the customer.
CONDITIONS:
The warranty is attached to the initial installation location and home address, and is not transferable to new locations or new homeowners.
Battery failure, reasonable wear and tear, and accidental, deliberate or cosmetic damage caused by the dealer during installation are not covered by the warranty.
In addition, the following will void the warranty entirely:
- Installation by someone who is not a Stiltz Authorized Dealer
- Failure to protect the lift from construction or installation environmental
factors, including dust, debris, paint, etc. - Damage caused by the ownerโs failure to follow safety guidelines or
operational instructions - Failure to follow Stiltzโs routine maintenance schedule
- The removal and relocation of the lift, even within the same property
