RAZ, TRAKZ Tub Sliders

$5,290.00

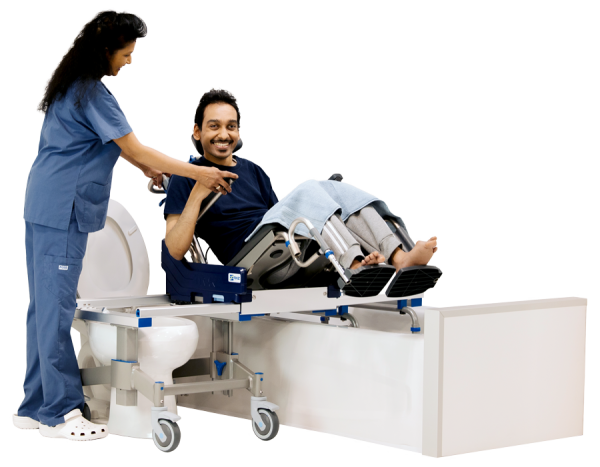

TRAKZ Tub Slider – Propel & Tilt by RAZ Design

Provides a safe, practical bathing and toileting solution when a roll-in shower is unavailable. Its bridge system allows the seat and user to travel securely over a standard bathtub, while the patented Zbrilok™ Safety System helps prevent movement onto the bridge until both bases are properly connected. Available as the TRAKZ-AP Attendant Propel or TRAKZ-AT Attendant Tilt, with a 350 lb weight capacity.

Benefits

  • Provides bathtub access without requiring a roll-in shower
  • Patented Zbrilok™ system enhances transfer safety
  • Available in non-tilt and 35° attendant-tilt configurations
  • Tilt model helps users clear the bathtub wall more easily
  • Toolless height and stabilizer adjustments simplify setup
  • Multiple bridge lengths accommodate different bathroom layouts
  • Integrated commode functionality adds versatility
  • Swing-away arm and foot supports facilitate transfers
  • Corrosion-resistant construction for wet environments
Model
Slide Orientation: Must select one
Bridge Lengths
Trakz Back Support Options
Arm Supports – Wrap-around, swing-away, removable
Arm Support Pads – *¹ Not compatible with TZFAP / TZTR / TZPAM, *² Recommended when Lateral Thoracic Supports (TLTL/S) and Molded Arm Troughs (TZTR) are both ordered
Foot / Leg Supports and Accessories – *¹ Not compatible with TZMFX8, ²Not compatible with TZMFX8 / TZVS
Positioning Pads – Head Supports
Lateral Thoracic Supports, select ZLAEP extension plate below
Extension Plates for Lateral Thoracic Supports These plates allow for an additional 1.5″ medially and can be used with Lateral Thoracic Supports
Pelvic Belts – *¹Non-absorbent belts – recommended for infection-control environments
Chest Belts – *¹Non-absorbent belts – recommended for infection-control environments, ²Optional tension – Adjustable Upholstery includes loops to retain a chest belt (ZCBM / ZCBL). When the chair is supplied with a Symphony Back, Chest Belt loops ar
Other
Free shipping on product orders over $200 (rentals excluded)
Paying with ADP, March of Dimes, VAC or insurance? See funding options
See it in person at our Mississauga showroom, 5-3600A Laird Rd. (Mon–Fri, 9–5)
Questions about sizing or options? Call 905-608-9225 or toll-free 1-877-689-9789
Call a specialistAsk a question
SKU: T188, T1BASE, T388, T3BASE Categories: , , , , , , Tags: , , , , , Brand:

TRAKZ Tub Sliders Propel and Tilt features:

  • Patented Zbrilok™ Safety System

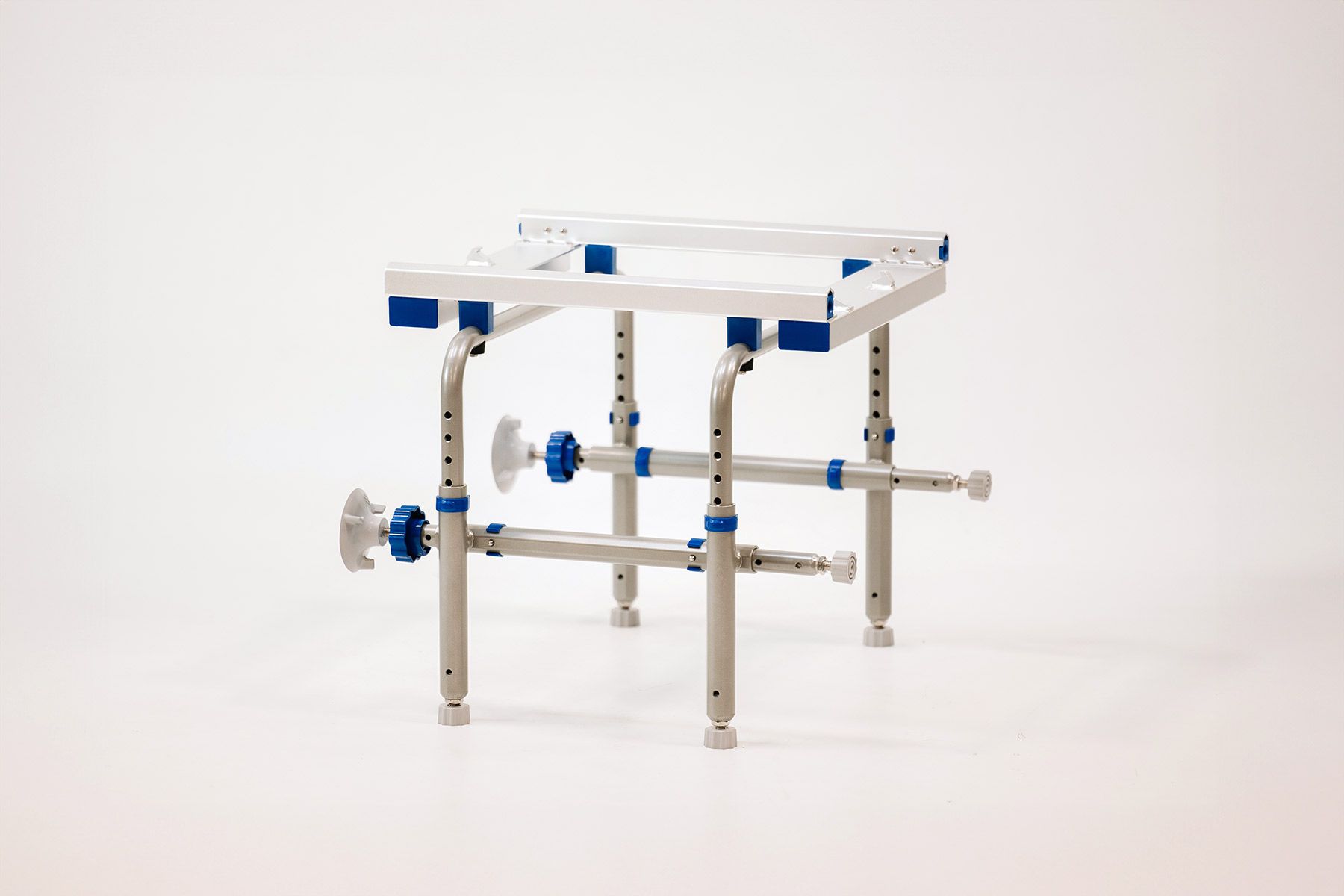

  • Mobility base, tub base, and bridge system
  • 350 lb weight capacity
  • TRAKZ-AP non-tilting attendant-propel model
  • TRAKZ-AT attendant-tilt model with 35° tilt
  • Dual-arc rotational tilt geometry on TRAKZ-AT
  • Toolless base height adjustment
  • Toolless horizontal stabilizer adjustment
  • Seven standard bridge lengths plus custom options
  • Wraparound padded swing-away arm supports
  • Removable arms reduce overall width to 20.75"
  • Dual-locking 5" Tente casters
  • Adjustable, removable foot supports
  • Integrated commode system
  • Aluminum base frame
  • Stainless steel back frame, footrests, and hardware

Specifications

Specification TRAKZ-AP TRAKZ-AT
Configuration Attendant Propel Attendant Tilt
Weight Capacity 350 lbs 350 lbs
Overall Width with Arms 23" 23"
Width without Arms 20.75" 20.75"
Overall Length 35.5" 36"
Tilt Range N/A 35°
Back Support Height 20" 20"
Seat Width 18" 18"
Seat Depth 17" 17"
Arm Height Above Seat 10" 10"
Product Weight 77.5 lbs 95 lbs

Bridge & Height Specifications

  • Standard bridge lengths: 7", 8.5", 9.5", 10.5", 12.5", 14.5", 16.5"
  • Underside of bridge to top of seat:
    • TRAKZ-AP: 6.25"
    • TRAKZ-AT: 8.5"
  • Bridge-to-floor, high configuration: 15.75"–19.75"
  • Bridge-to-floor, low configuration: 11.75"–15.75"
  • Adjustments are available in 1" increments

Seat-to-Floor Height

Base Configuration TRAKZ-AP TRAKZ-AT
High Range 22"–25" 24.5"–27.5"
Low Range 17"–21" 19.5"–23.5"

Seating & Positioning

Molded Seat

The 18"W × 17"D molded seat is contoured to support pelvic stability and pressure reduction. Soft integral-skin foam provides comfort and durability, while open-front and bridged-front configurations are available. The seat pad is removable for easier cleaning.

Back & Arm Supports

The standard back includes 18"-wide molded vinyl upholstery with padded, wraparound arm supports. The arms swing away and can be removed when additional transfer space is needed.

Foot Supports

Foot supports feature:

  • Toolless leg-length adjustment
  • Swing-in and swing-out operation
  • Removable design for transfers and cleaning

Head Support

The standard small head support measures approximately 10"W × 4"H and is shaped to cradle the head. An optional 12"W × 6"H large head support is also available.

Commode & Urine Management

TRAKZ incorporates a removable injection-molded commode pan with a lid for splash and odour management. An angled handle improves carrying ergonomics, while rear-visible receiver brackets simplify installation beneath the seat.

Available urine-management accessories include the Whizard winged urine deflector, SplaShield molded deflector, and Splash Curtain.

Warranty

  • Lifetime warranty against corrosion on specified aluminum and stainless-steel frame components
  • 2-year limited warranty on the frame against manufacturing defects
  • 1-year limited warranty on other components, subject to normal wear-and-tear exclusions
