Pride, Jazzy Carbon HD Power Wheelchair
Pride, Jazzy Carbon HD Power Wheelchair
$4,290.00
-

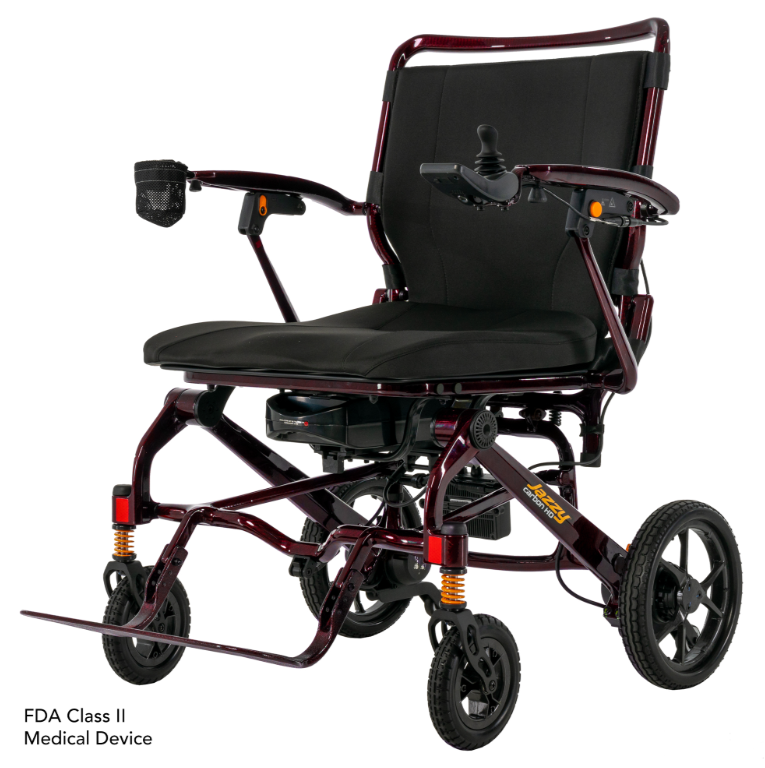

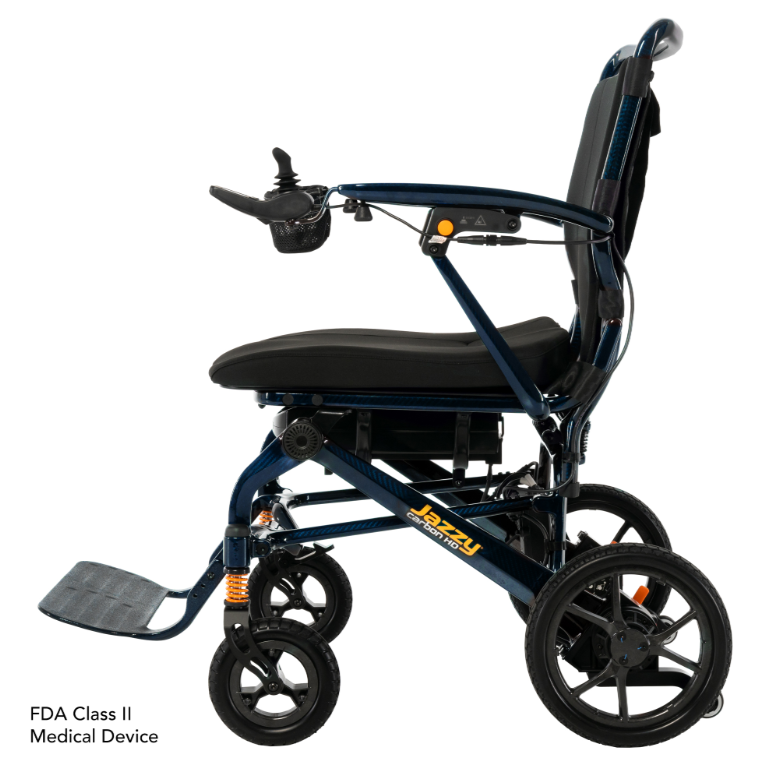

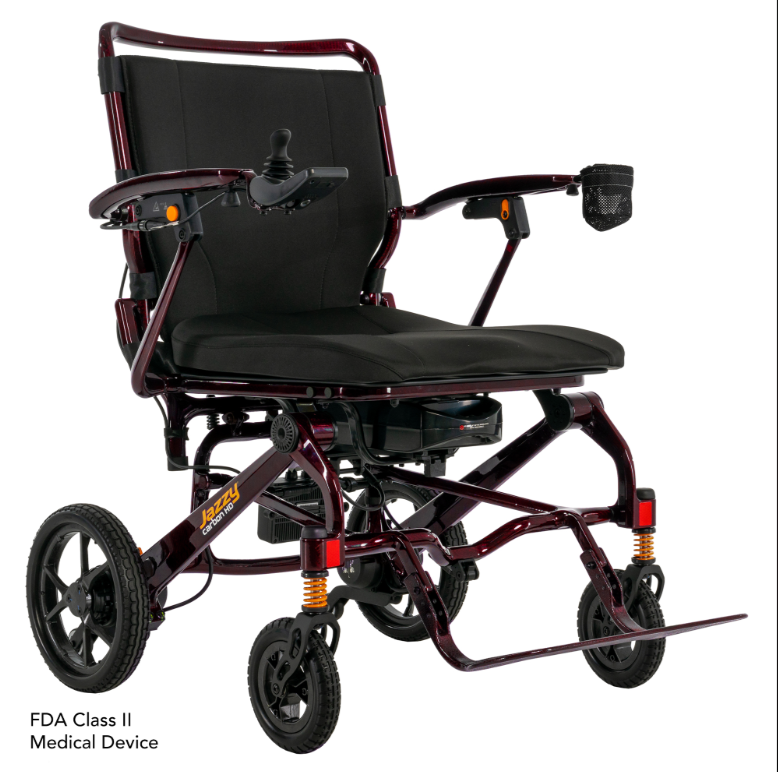

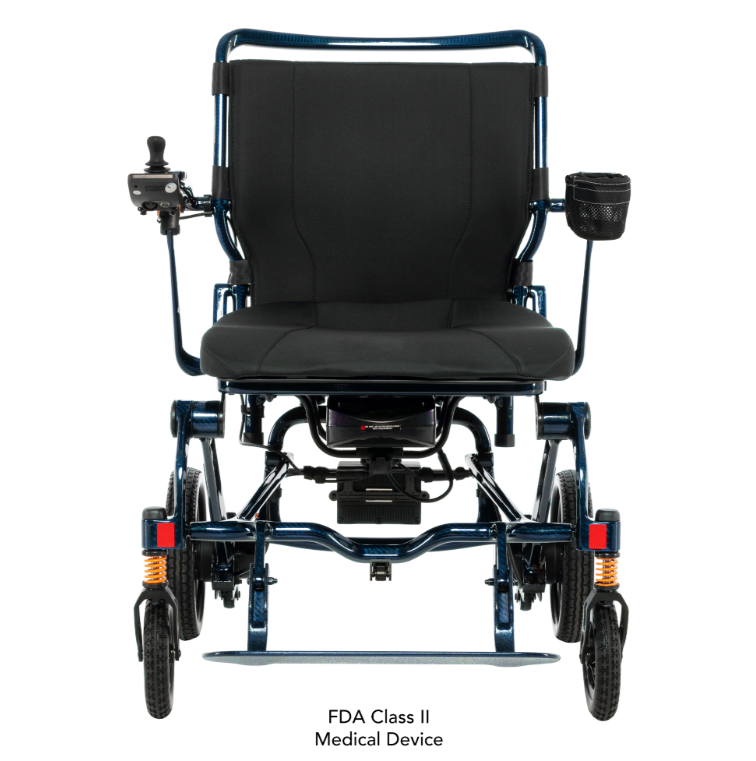

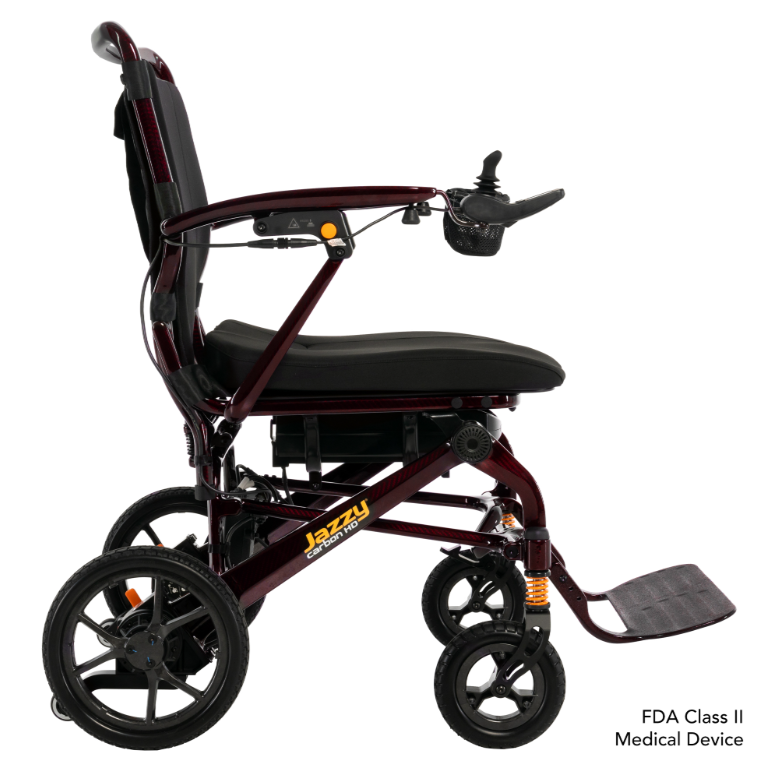

Jazzy Carbon HD Power Wheelchair by Pride Mobility
The Jazzy® Carbon HD weighs 32.2 lb without the battery and boasts a 400-lb weight capacity without compromising on quality or performance. It quickly folds and is easy to pick up thanks to a durable, lightweight carbon fiber frame.
Heavy-duty mobility meets lightweight mobility.
The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.
Easy to fold, easy to lift, easy to transport.

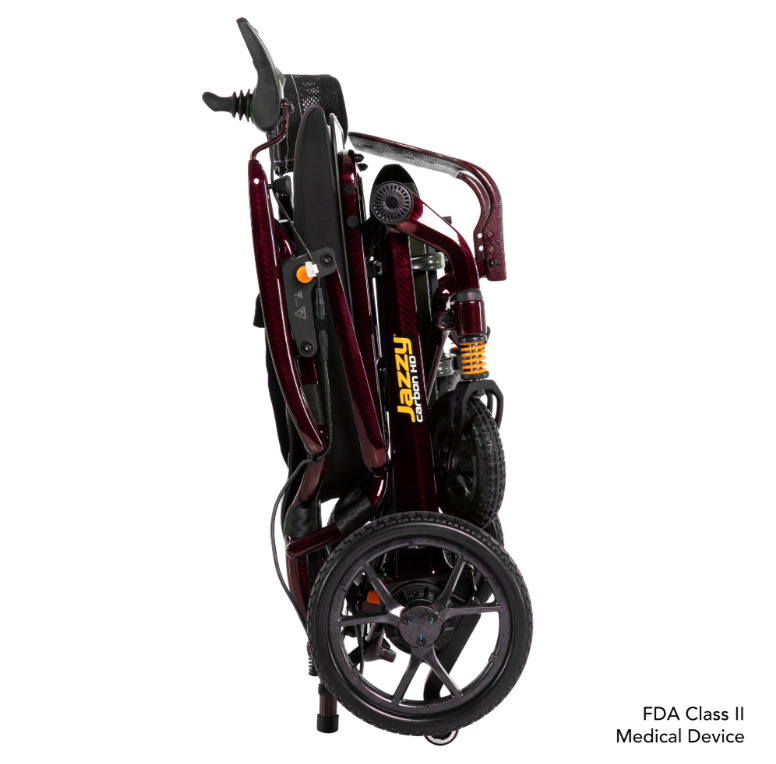

The Jazzy® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.
*Airline Friendly
**Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy Carbon HD and its lithium-ion batteries are permitted.
Jazzy Carbon HD Power Wheelchair features:
- Unit weighs 32.2 lb without the battery
- 400-lb weight capacity
- Durable carbon fiber frame

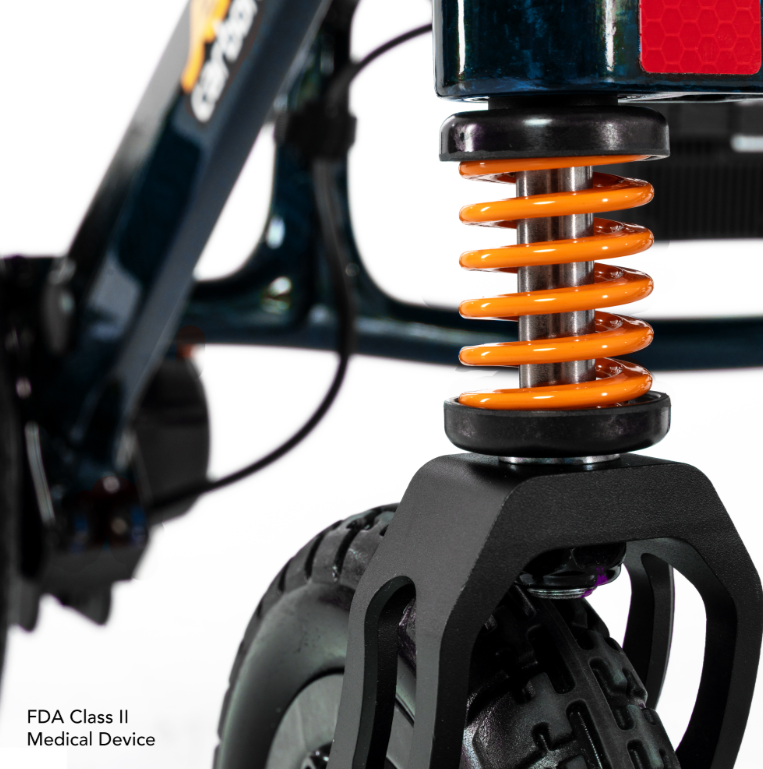

- Front and rear suspension
- Top speed of up to 3.7 mph
- Folded dimensions: 31.3" L x 26.4" W x 13" H
- Easy fold design that locks into folded position
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion

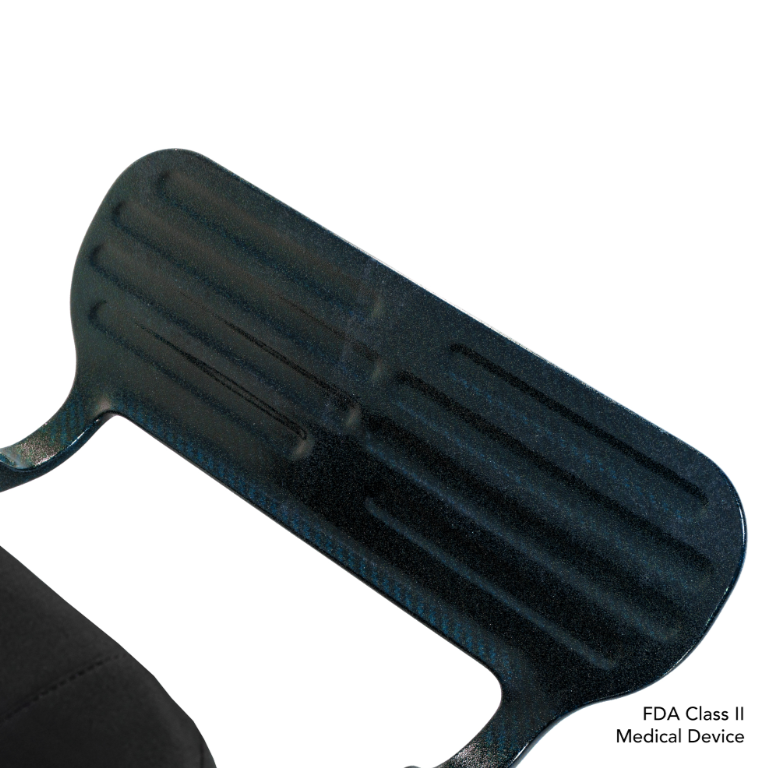

- Extra-wide adjustable foot platform 17.25" W x 5.9" D
- 20 Ah lithium battery** charges quickly (Standard)

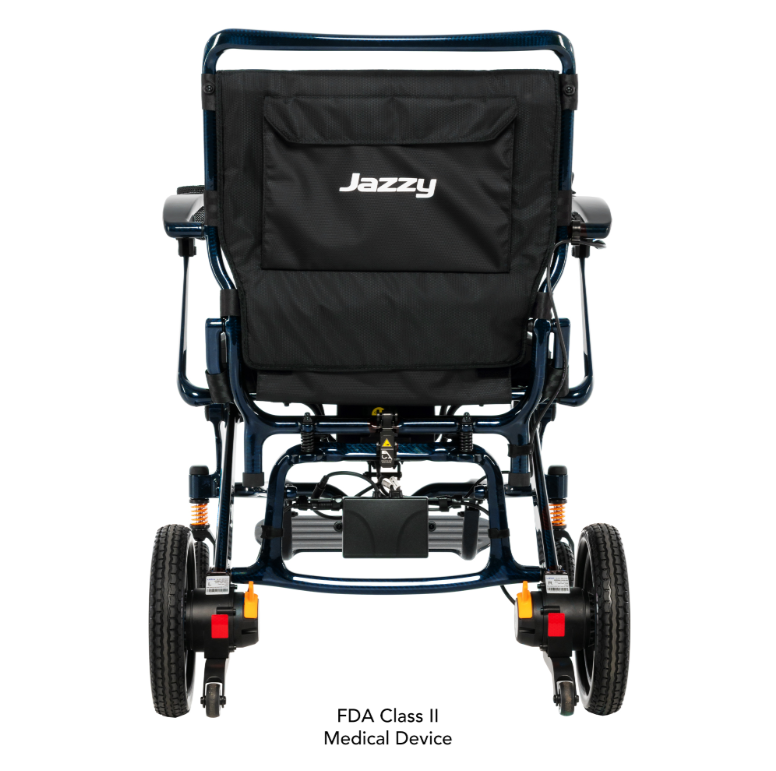

- Storage pocket on back of seat

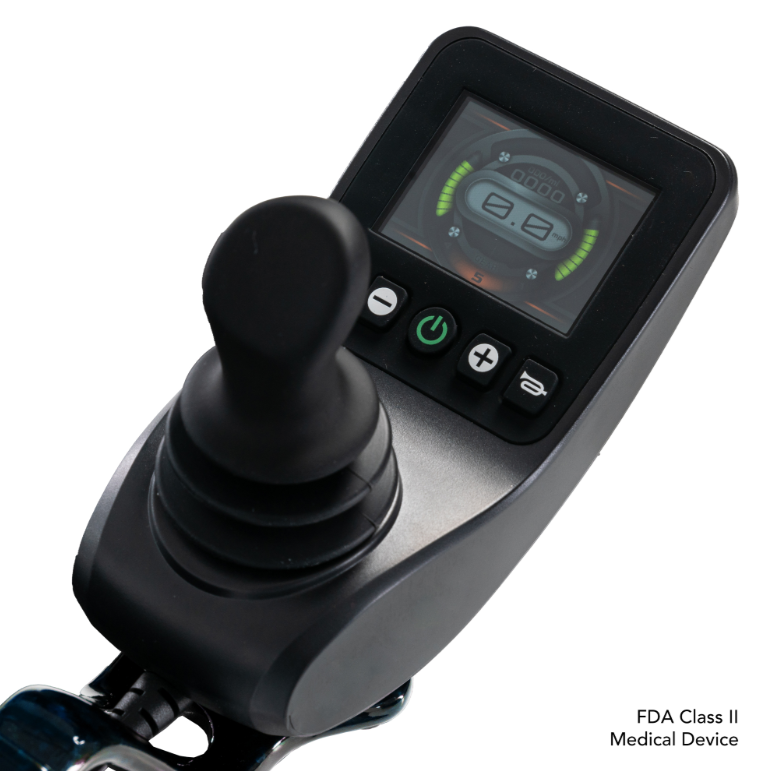

- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion and adjustable lap belt (standard)
Specifications:
| Part Number | Jazzy® Carbon HD |
|---|---|
| Weight Capacity | 400 lb (182 kg) |
| Maximum Speed* | Up to 6 kph (3.7 mph) |
| Ground Clearance** | 1" at motor |
| Turning Radius** | 36.4" |
| Overall Length** | 36.81" |
| Overall Width | 26.4" |
| Suspension | Full front and rear suspension |
| Tires | Front: 6.5" Rear: 10.6" |
| Range Per Charge* | Up to 12.4 mi (20 km) per charge |
| Product Weight** | 32.2 lb (14.6 kg) without batteries |
| Standard Seating | Dimensions: 20" x 20" seat Seat sling with removable cushion |
| Folded Dimensions | 31.3" L x 26.4" W x 13" H |
| Motor Output | 24V 250W Brushless |
| Brakes | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box Size: 20 Ah |
| Battery Weight | 7.5 lb (3.4 kg) |
| Battery Charger | 2 Amp |
| Warranty | 5-year on frame; 1-year limited on electronics 1-year limited on drivetrain 1-year limited on battery |
