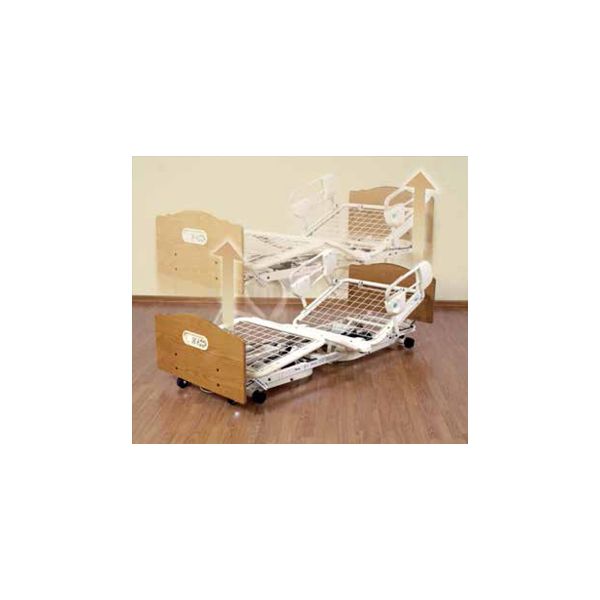

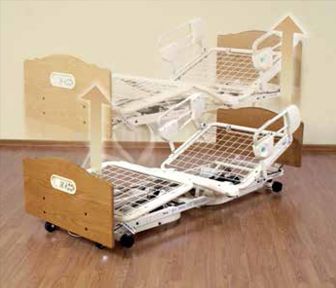

UltraCare XT Hospital Bed features:

• Toroidal architecture engineering of the bed’s steel frame is up to 30 times stronger than angle iron
• AdvanceCare positioning offered as a standard feature with integrated pendant connections on both sides of mattress support platform
• Optional Staff Control offer advanced clinical control, safety lockouts and ergonomic functionality
• Extendable Four-section mattress support platform offers full range of comfort and therapeutic positions, which may reduce skin shear

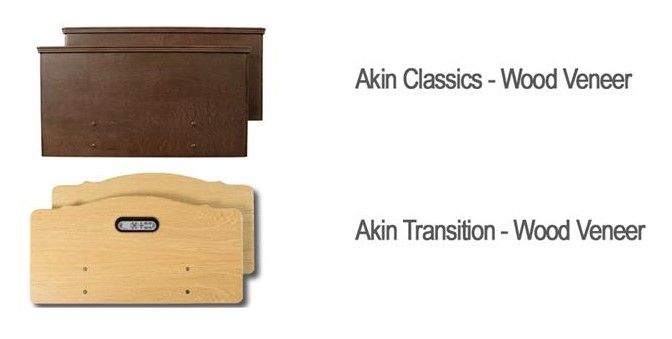

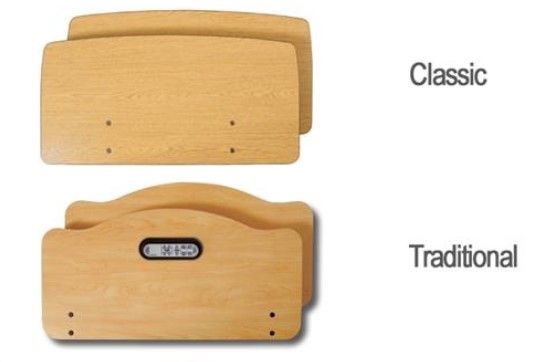

• Attractive bed panel options available in a wide array of designs and finishes
• UltraLock is available at the foot end or both the head and foot to maximize security or mobility at any height

Specifications:

• Bed Length 80" or 76"
• Bed Width 35" or 42" with UltraWide Kit
• Bed Weight 220 lbs
• Bed Weight Capacity 500 lbs
• Operating Capacity 500 lbs
• Underbed Clearance 23¾"
• Sleep Surface Travel Range 7" to 30"
• Max. Back Angle 65 degrees to horizontal
• Max. Knee Angle 35 degrees to horizontal
• Max. Knee to Leg Angle 45 degrees
• Safety Standards: UL60601-1, CAN/CSA C22.2 NO. 601.1, IEC 60601-2-52, CAN/CSA C22.2 NO. 601.2.52

Rails:

• Standard ½ Rail
• Pivoting Assist
• Deluxe Pivoting Assist

Upgrade Options:

• Positioning:
  • Standard (6 function) - Ergonomic pendant with Hi/Lo, head, knee
  • Advanced (8 function) - Back-lit ergonomic pendant with Standard controls + Comfort Chair + Auto Transfer
• Mobility***:
  • Standard - Roll-in low only
  • Roll at any height (lock at foot)
  • Roll at any height (lock at head & foot)
• Staff Control (in foot panel):
  • Standard: Hi/Lo, head, knee, Lock-out
  • Advanced*: Standard + Comfort Chair + Auto Transfer + Trendelenburg / RT + SafeLight Control (SafeLight extra)
• Accessories:
  • Floor Mat (33”x60”x2”)
  • Drainage bag holder
  • IV Rod
  • Rail Pad
  • Trapeze
  • Pan Deck
  • Battery Backup
  • Under-bed Light** (Staff Control required)
  • Head of bed angle indicator
  • Trend angle indicator
  • Retaining Bracket (foot/head/both)
  • Mattress Side Stop*
  • Panel mount pendant holder

* If bed configured with no rails Mattress Side Stop required (76” frame uses N517, 80”+ frame uses N518)
** Staff Control required
*** Roll at any height required

Warranty:

• Bed is guaranteed for 1 Year from Date of Delivery against defects in materials or workmanship under normal usage circumstances
• 1-Year Warranty includes all mechanical and electrical components
• 7-Year Warranty on Steel Structural Components
• Lifetime Warranty on Welds
