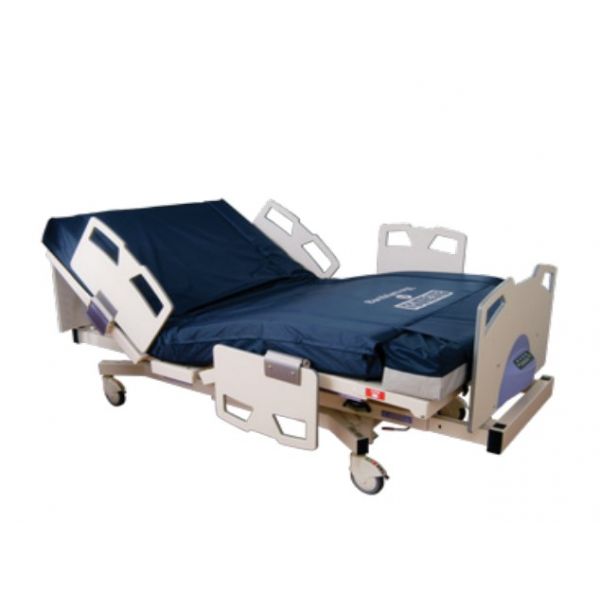

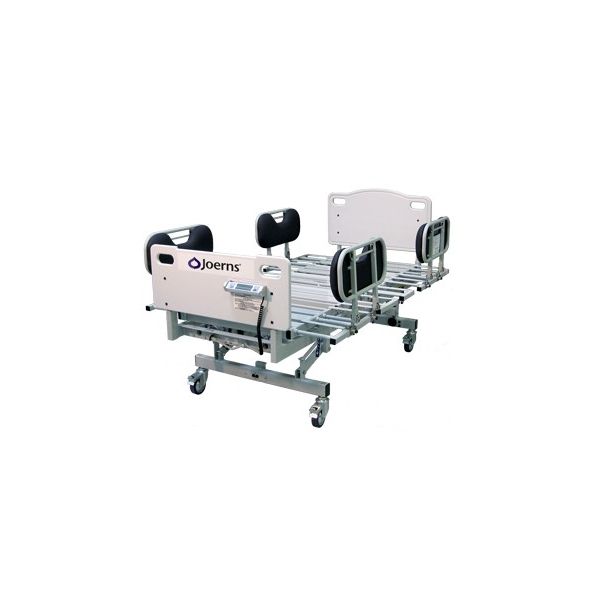

RC 1000 Bariatric Hospital Bed features:

• Split frame design for easy delivery and storage
• 5 functions including Trendelenburg and cardiac chair
• Integrated scale for one-button weighing in any position

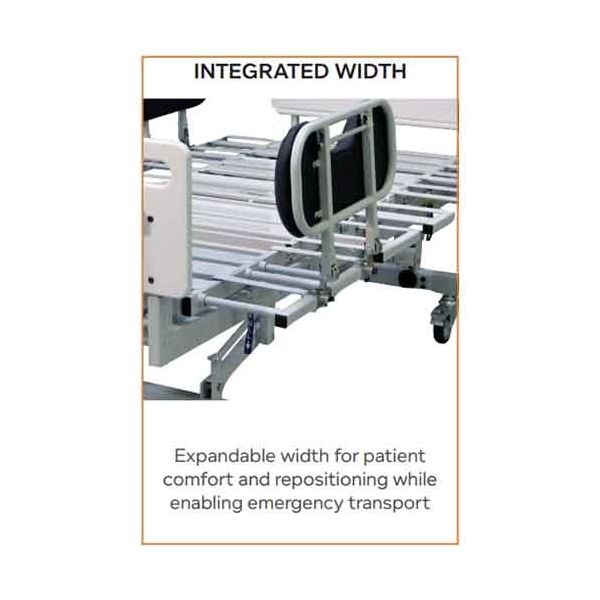

• Expandable bed deck permits transport through doorways as narrow as 40”
• Accomodates mattresses up to 54” wide
• 3 position, wing type, padded side rails
• IV pole and Foley bag holder
• 1000 pound weight capacity
• Optional trapeze

Specifications:

• Accommodates mattress 37”, 39”, 42”, 48” or 54” wide
• Bed deck length: 84” (96” with optional extender)
• Overall frame size: 39.5” to 56.5” wide x 91” long
• Bed deck height range: 17” to 30”
• Head/Footboard width: 38”
• Total weight: 570 pounds
• Power requirements:115 VAC 60 Hz 10.5 AMP
• Warranty: 5 yrs - workmanship & materials,
  1 yr - electrical system

Optional Accessories:

• Bariatric trapeze, mounted (Ref Part 490021-0)
• Length Extension 12 inch (Part 400083-0) - (including staff control patch cable 904215-0)
• Foam Bolster, 80" Matt - 28”W x 16.5”L x 7”H (Ref Part 903372-0)
• Foam Bolster, 84" Matt - 28”W x 12.5”L x 7”H (Ref Part 903373-0)
• Scale (must be ordered at time bed is ordered)

Mattress Options:

BariGel 1000 Mattress

• 42" x 80" Bariatric Mattress with Stretch Zipper Cover
• 48" x 80" Bariatric Mattress with Stretch Zipper Cover
• 54" x 80" Bariatric Mattress with Stretch Zipper Cover
• 42" x 84" Bariatric Mattress with Stretch Zipper Cover
• 48" x 84" Bariatric Mattress with Stretch Zipper Cover
• 54" x 84" Bariatric Mattress with Stretch Zipper Cover
