neXus 3 Rollator Parts by Humancare
**Select Options for Price

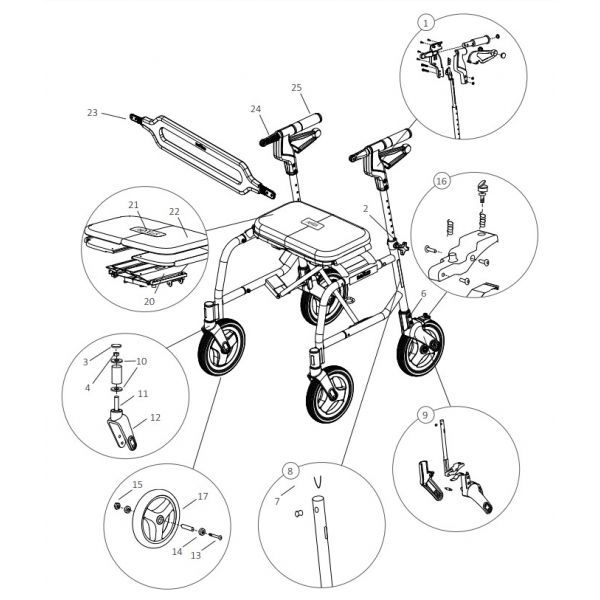

Parts List for neXus 3 Rollator
| No. | Part Description | Part Number |
| 1 | Brake Handle Complete Right - Red Ball Left - Red Ball |
93243
93201 |
| 1 | Brake Handle Complete Short Right - Red Ball Left - Red Ball |
93245 93244 |
| 2 | Star Handle and Bolt Star Handle (Wing Nut) Bolt |
89096 |
| 3 | Bolt Cap | 4823 |
| 4 | Front Fork Stem Nut | H48025 |
| 5 | Rear Fork Tubing Nut (Not Shown in Image) | H48031 |
| 6 | Rear Fork Tubing Screw | H48030 |
| 7 | Lock Button | 4833 |
| 8 | Lower Brake Rod Assembly Left- Super Low Left - Low Left - Standard Right - Super Low Right - Low Right - Standard |
93256 93257 93258 93259 93260 93261 |
| 9 | Rear Fork Assembly Left- Super Low Left - Low Left - Standard Right - Super Low Right - Low Right - Standard |
AS48013 AS48015 AS48017 AS48014 AS48016 AS48018 |
| 10 | Front Fork Bearing | H48026 |
| 11 | Front Fork Stem Bolt | H48024 |
| 12 | Front Fork | 4825 |
| 13 | Axle Bolt | H48020 |
| 14 | Wheel Bearing | H48022 |
| 15 | Axle Nut | H48021 |
| 16 | Brake Pad Complete Hex Adjustment Screw Brake Pad Spring Pivot Sleeve Screws (2) Brass Pivot Screw Adjustment Screw Lever Spring Lever Brass Lug |
76011 |
| 17 | Wheel Complete, Black Wheel Bearings (2/Wheel) Bearing Spacer |
93282-02 |
| 18 | Plastic Cap Screw Cover (Rear Fork)Â (Not Shown in Image) | H45003 |
| 19 | Curb Climber (Not Shown in Image) | 4879 |
| 20 | Folding Seat Mechanism | P45007 |
| 21 | Seat Handle Red |
P45008 |
| 22 | Seat Pad Set (2pc) | 93263 |
| 23 | Backstrap Complete Backstrap Backstrap Clamp Screw Backstrap Clamp Nut |
93310 |
| 24 | Backstrap Clamp Left Right |
4880 4881 |
| 25 | Handle Grip | 20-024 |
| 26 | Wire Basket  (Not Shown in Image) | 4510 |
| 27 | Replacement Soft Bag Bracket kit (Not Shown in Image) | 90276 |
| 28 | Soft Zippered Bag Complete (Not Shown in Image) | 93280 |
| 29 | Soft Zippered Bag - 5 Pack (Not Shown in Image) | 93281 |
| Â | Backstrap Clamp Screw | H48080 |
| Â | Backstrap Clamp Nut | H48081 |
