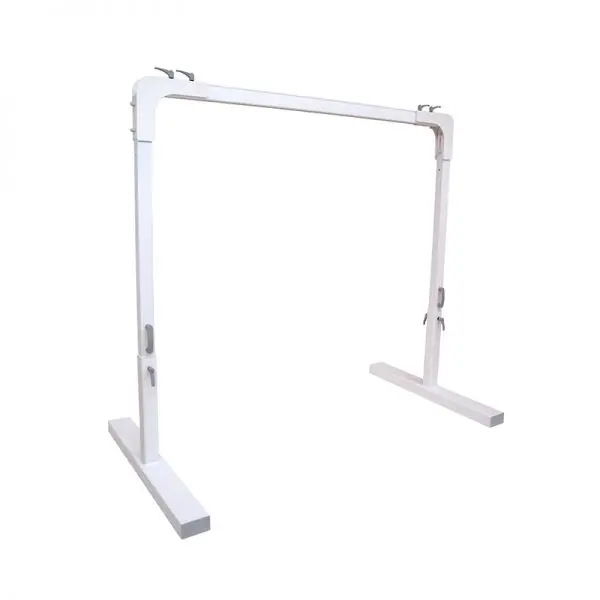

Castor Free Standing Track features:

• Compact, lightweight design
• Sturdy and stable construction
• Made of aluminum
• Easy to assemble and disassemble
• Easy to move and store
• Track available in different lengths
• Seven height positions in 3 in (7.5 cm) increments
• Flexible width (lifting area) and height (lifting range)
• For use with both fixed and portable ceiling lift motors
• Weight capacity: 660 lbs (300 kg)

Specifications:

Material: Aluminum

Safe Working Load (SWL)

• 82 in (2080 mm) track: 450 lb (204 kg)
• 156 in (3690 mm) track: 625 lb (283 kg)
• 197 in (5000 mm) track: 450 lb (204 kg)

Dimensions (L x W x H)

• Length, supporting foot: 47.0 in (1190 mm)
• Width, total: 79–276 in (2000–7010 mm)*
• Width, between uprights: 82–279 in (2080–7090 mm)*
• Width, supporting foot: 5.0 in (120 mm)
• Width, between supporting feet: 80–277 in (2030–7040

Lifting Range (W x H)

• Width: 88–285 in (2230–7240 mm)*
• Height: 76–89 in (1930–2260 mm)

Weight

• 82 in (2080 mm) track: 97 lb (44 kg)
• 156 in (3690 mm) track: 149 lb (68 kg)
• 197 in (5000 mm) track: 162 lb (73 kg) mm)*

*Depending on rail length
