HaCare, Bed Pack Y-Type Y3 Front-Exit Move Hospital bed, PP-UH-L8406-FE-27-Varnished-Wood Naturel
HaCare, Bed Pack Y-Type Y3 Front-Exit Move Hospital bed, PP-UH-L8406-FE-27-Varnished-Wood Naturel
$12,899.99
Nursing Home Bed Pack Y-Type Y3 Front-Exit Move by Ha Care
Completely redesigned, the range of Y-Type FE beds offers a wide choice of options and accessories to simplify your care and offer great comfort to the patient.
The Y-Type FE Ymagyn bed makes it easy to get in and out of bed, from lying to standing position and vice versa.
The patient increases their autonomy and the caregiver
is less solicited.

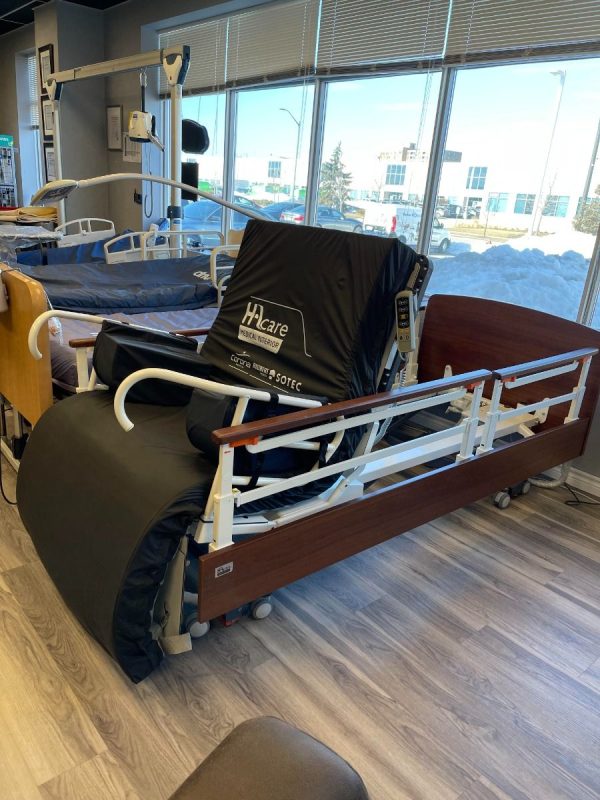

**In stock in Brown Color PanelsÂ
**Available in other colors ETA 8 weeks
Bed Pack Y-Type Y3 features:
- EasyNursing: The H-frame has been specifically designed to be lighter, with no
retention zone. With its full-width sleeping surface, patient handling and comfort are
optimised. We must work with you to reduce MSD. - Comfort: The Front Exit function offers the patient a real sitting position,
humanizing during tours, suitable for meals and helping to get up. - Ultra low: The Y-Type Ymagyn 4 bed offers a very low position to secure the patient
in the event of a fall during the night. Restraint can thus be avoided. - Full Accessorization: Its EasyClip system offers a wide choice of accessories in
order to offer a bed adapted to each pathology.
Options Included:
- Easytouch control satellite with preprogramming of the main functions with remote-control
- Bilateral release handle of backrest - for bed front exit
- Handles to ease getting out of bed for Bed Front-Exit (Pair) - Without cushions
- Lateral protective cushions for accessory LX-Calfeh for Bed Front-Exit (Pair)
Specifications:
| WEIGHT | |
| Weight bare structure | 90 kg (198.41 lb) |

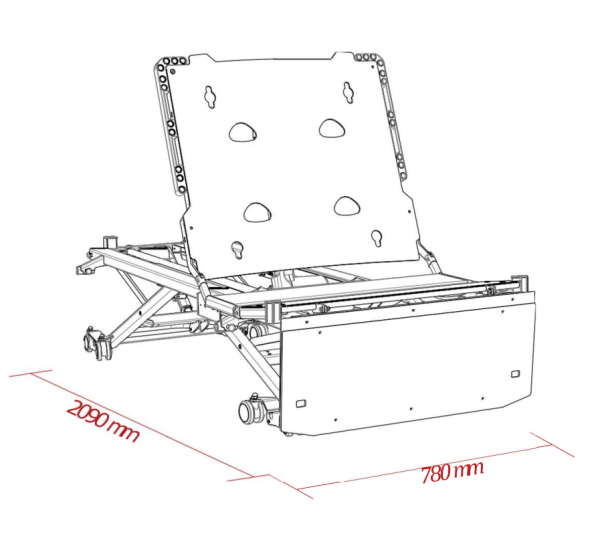

| DIMENSIONS | |
| Length bare structure | 210 cm (82.6") |
| Width bare structure | 89,7 cm (35.3") |
| Length structure + H&F Boards + siderails | 215 cm (84.7) |
| Width structure + H&F Boards + siderails | 100 cm (39.4") |
| Length sleeping surface | 200 cm (78.8") |
| Width sleeping surface | 90 cm (35.5") |
| Variable height minimum | 20 cm (7.9") |
| Variable height maximum | 80 cm (31.5") |
| Automatic medium stop position | 40 cm (15.8") |
| Automatic security stop position | 24 cm (9.5") |
| TYPE | |
| Variable height type | Y-TYPE |
| Type of engine | Electric |
| Type of brake | Centralized brake in foot only |
| WEIGHING SYSTEM | |
| Weighed (Yes/No) | No |
| MATERIAL & COATING | |
| Tray Structure | White Epoxy Stee |
| Base Structure | Black Epoxy Steel |
| Variable height | Black Epoxy Steel |
| Bedbase / sleeping surface | Compact HPL |
| Wheels | Thermoplastic rubber, grey non-marking |
| BASE | |
| Type of footing | Castors |
| Wheels diameter | 75 mm (2.95") |
| INCLINATIONS | |
| Backrest | 74 ° |
| Knee brake section | 38 ° |
| Knee brakes | 130 ° |
| Translation | 7 cm (2.8") |
| Trendelenburg | 17 ° |
| Reverse trendelenburg | 15 ° |
| PROTECTION SIGN | |
| Bed | IPX4 |
| Engines | IP66 |
| SAFETY CHARGE | |
| Maximum patient weight | 195 kg (430 lb) |
| SWL | 260 kg (573 lb) |
| CONFIGURATION | |
| Configuration | Siderails - H&F boards - Mattress |
| REGULATION | |
| Medical device class | Class I |
| CE marking | CE |
| European regulation (UE 2017/745) | Yes |
| FIRE CLASSIFICATION | |
| Motorization | V0 |
| Compact HPL | M1 |
| Laminated | M1 |
| Melaminated panel | M3 |
Additional information
| Weight | 198 kg |
|---|
