Guldmann, GLS5.2 Active Mobile Standing Lifter, 562201
Guldmann, GLS5.2 Active Mobile Standing Lifter, 562201
$7,350.00
GLS5.2 Active Mobile Standing Lifter by Guldmann Care-Lift Solutions
Standing lifter – safe and simple to operate
The GLS5.2 Active lifter is a mobile standing lifter designed to facilitate day-to-day routines for user and carer alike. The GLS5.2 model is designed to lift the user from a seated to a standing position and is also useful for frequent everyday moves back and forth between bed, chair and bathroom.
This active lifter thus provides a safe, simple and comfortable way to lift and support users with some or full control of their upper body.
The GLS5.2 Active lifter is simple and intuitive to operate, and designed to be strong, stable and safe.
The standing lifter simplifies a great many lifting and moving operations for user and carer alike and makes a significant contribution to preventing back pain and other strain injuries among care staff.
The lifter design features ergonomic push handles for carers of any height, as well as a bottom section to push with the foot so as to improve manoeuvrability.

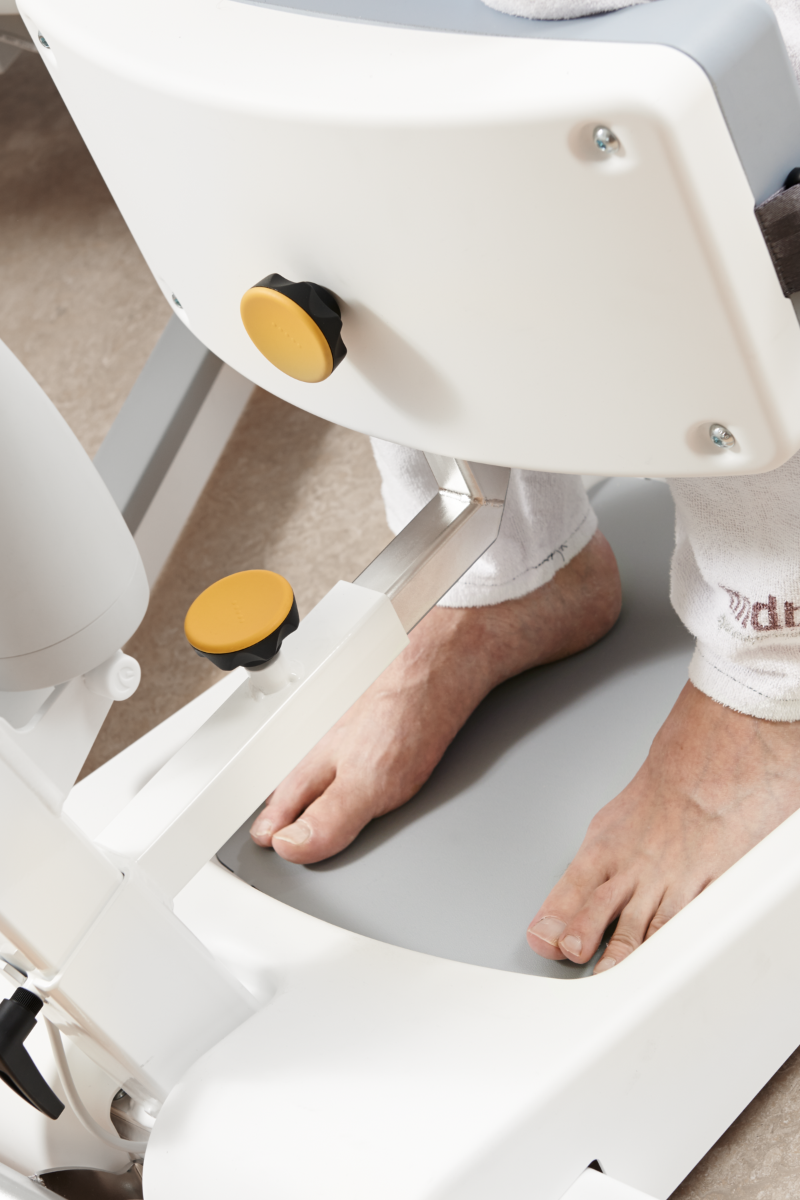

The adjustable knee support is padded to optimise comfort for the user. The footrest is removable and easy to clean, which helps maintain a high level of hygiene.
GLS5.2 Active Mobile Standing Lifter features:
Strong, reliable and powerful
- SWL 155 or 205 kg
- Designed for intensive use in professional environments
Meets and exceeds all current norms and regulations in industry
Strong 25,2 V / 2,9 Ah Li-Ion battery ensures long usage time, even in heavy use environments- Shorter charging time to full capacity
- Prolonged battery life
- More lifts from a single charge
- Strong, noiseless and fast Linak actuators
- Varied charging options – on board lift and off board lift via extra battery
- Built in and easily accessible docking station for battery
- Extra battery packs as option
- Fully automatic switch mode charger
- Removable and easy to clean foot tray
- The battery capacity is indicated in 3 intervals in the hand control;
- Low 0 - 25%
- Medium 25 - 50%
- High 50 - 100%
Audio signal at low battery voltage when approx. 25%.
- Visual service indicator lights up when maintenance is required.

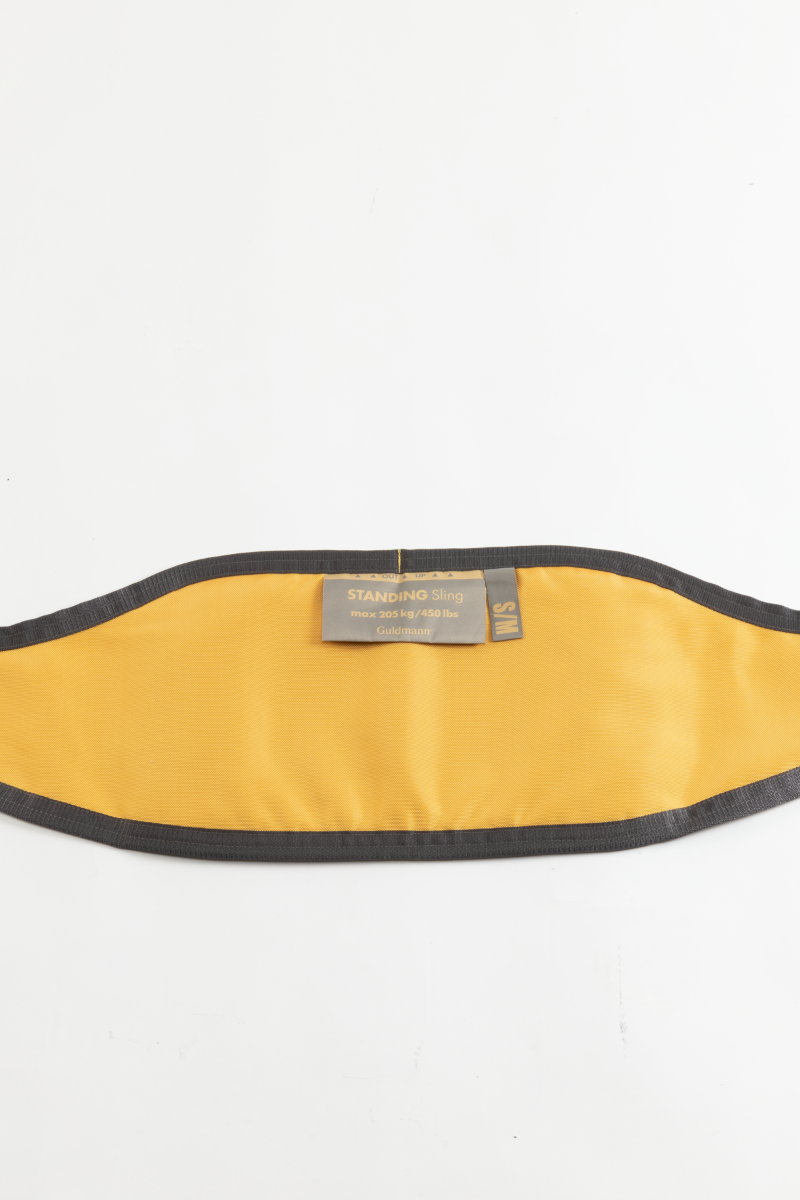

Included: GLS5.2 Standing sling with elastic Support strap
Function: Supports the upper back under the shoulders to the lower back
Suitable for: Persons who can stand up but not raise themselves to a standing position
| Item Number | Size |
| 28336 | Small/Medium |
| 28337 | Large |
| 28339 | X-Large |
| 28340 | XX-Large |
Specifications:
| Item Number | 562201 |
| Functions | |
| Lifting capacity, max | 155/205 kg |
| Operation | |
| Lift | Electric |
| Width adjustment | Electric |
| Knee support | Manual |
| Lifting boom | Manual |
| Weight | |
| Totally | 54 kg |
| Chassis without foot plate & knee pad | 23 kg |
| Mast and lifting boom incl. control box & battery | 20 kg |
| Hand control | 0.25 kg |
| Measurements | |
| A | 25 mm |
| B | 90 mm |
| C | 1770 mm |
| D | 1237 mm |
| E | 575 mm |
| F | 1210 mm |
| G | 460 mm |
| H.min/max | 850/1740 mm |
| I. min/max | 350/450 mm |
| J. min/max | 560/1190 mm |
| K. min/max | 670/1310 mm |
| L min/max | 230/320 mm |
| Turning radius | |
| Turning Radius | 1360 mm |
| Safety Features | |
| Emergency stop | Yes |
| Emergency lowering | Yes, electronic. Mechanical on request |
| Protection against trapping | Yes |
| Electrical parts | |
| On/off | Automatically |
| Integrated Power supply for charging Input | 120-240Vac, 50-60 Hz, 30 VA |
| Battery, replaceable | 25.2 V / 2.9 Ah |
| Charging time | Max. 4 hours |
| Consumption/power of actuator | 24V, max 8A |
| Duty Cycle | Max 10%, max. 2 min on, 18 min off |
| Battery protection | Switches off automatically at low voltage. Diode light up to indicate critical voltage |
| Class of tightness | |
| Mobile hoist | IP 30 |
| Hand control | IPX 4 |
| Integrated Power supply | IPX 6 |
| Battery | IPX 6 |
| Actuator | IPX 4 |
