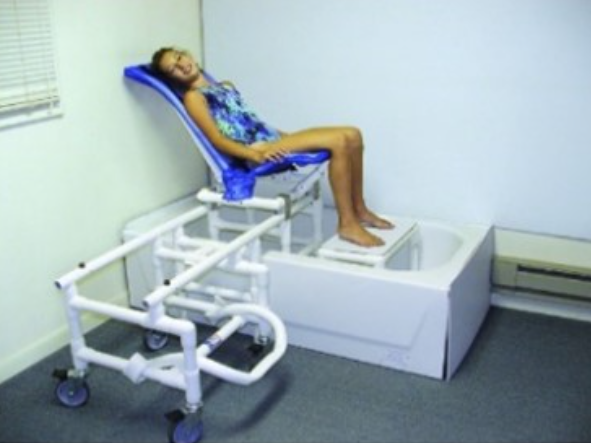

Pediatric Reclining Duraglide Transfer System features:

• 4 locking 5″ casters
• Adjustable Tub Base with suction cups
• Removable 12 qt. commode pail
• Dual Swing-Arms
• Safety belt
• Retractable footrest
• Easy-Level™ tub frame legs adjustable over a 5″ range

Specifications:

• Product Dimensions (inches): 45.5”Hx54”Wx38”L
• Product Weight (pounds): 35
• Shipping Dimensions (L x W x H) (inches): 34.00 x 23.00 x 25.00
• Shipping Weight (pounds): 35.00

INSTRUCTIONS

1. Position the chair for patient transfer.
2. Apply brakes on all casters.
3. Transfer the patient to the bath seat.
4. The seat and back are adjusted by depressing the locking buttons located under the seat and behind the back.
5. The chest and leg straps can be moved up and down and are adjustable by means of hook and loop.
6. Attach the bath seat and rolling base to the tub base and lock into place.
7. Depress the lock release lever and slide the seat onto the tub base.
8. Release the lock release lever and make sure it engages the tub base hole.

CAUTION

Never leave patient unattended.
Always apply all 4 brakes while transferring.
