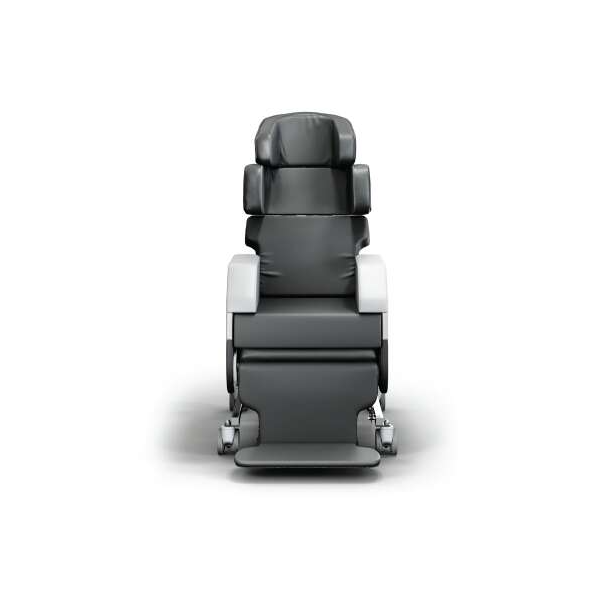

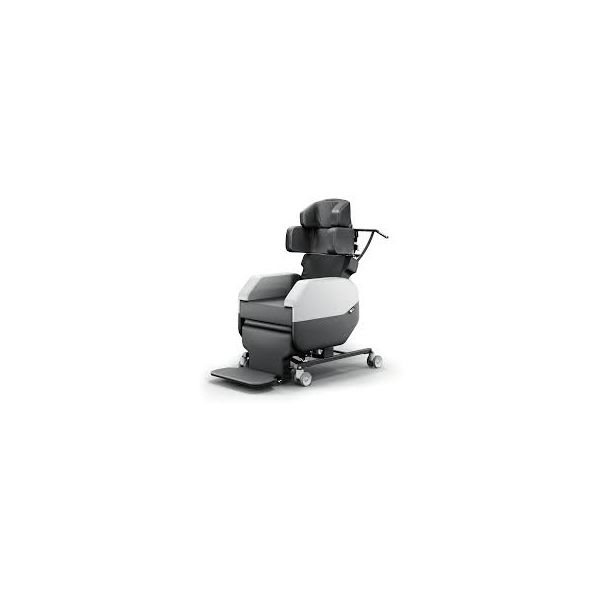

Arjo, Phoenix 2 Clinical Therapeutic Chair
Arjo, Phoenix 2 Clinical Therapeutic Chair
$11,550.00
-
Phoenix 2 Clinical Therapeutic Chair by Arjo
Is a clinically designed chair to provide maximum postural support and comfort.
Incorporating caregiver, clinical and patient feedback, Phoenix 2 has been engineered to offer the highest levels of clinical support for high dependency patients while offering caregivers an enhanced user experience when caring for their patients.
The features of the Phoenix 2 combine global clinical seating guidelines with the Seating Matters ‘4 Principles of Effective Clinical Seating.’ The chair is designed to help in the prevention of pressure injuries, sliding and falls from the chair, and to encourage early mobilization for patients who spend the majority of their time in bed.
Improved adjustability and configuration features are based on new anthropometric research data, particularly in the shoulder and head areas, and they ensure that caregivers can easily configure the chair to maximise patient clinical wellbeing and comfort.
Accommodating a variety of spinal conditions, the Phoenix 2 adapts to the changing needs of patients in ICU, HDU, SCI and through rehabilitation, or to meet the long term needs of a progressive condition. The Phoenix 2 is compatible with stand aids and hoists.
Phoenix 2 Clinical Therapeutic Chair features:
- Higher elevating and extending leg rest with wider calfpad and footplate: Improves pressure loading, reduces chance of legs falling between gaps at front of chair.
- Adjustable seat width: More accurate patient positioning and accomodates body shape changes.
- Inorporates both 30° and 45° tilt in space: Enhanced options in repositioning and pressure loading in line with clinical guidelines.
- Improved cushion performance: Offers greater envelopment for pressure management and comfort.
- Arm height adjustability: Helps achieve correct postural position and loading of the arms.
- Other features include: Simple to adjust wings and shoulders, Independent shoulder and later head adjustments, narrower head support, adjustable back height, integrated charger and handset withholder, washable actuators and control box, lithium battery.
Specifications:
| Product Information | |
|---|---|
| SWL | 200kg |
| Overall Height | 1380mm - 1470mm |
| Available Widths | 660mm - 820mm |
| Seat Depth | 430mm - 550mm |
| Safe Working Load (SWL) | ||
|---|---|---|
| 440 lbs (200 kg) | ||
| Chair Weight Unloaded | ||
| Manual: | 124 lb (57 kg) | |
| Motorized: | 154 lb (70 kg | |

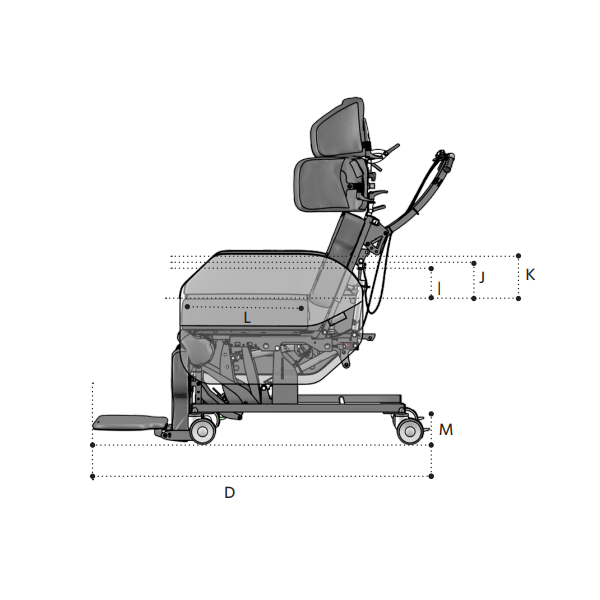

| Basic Dimensions | ||
| A | Overall height | 55” (1,400 mm) |
| B | Back height | 33” (800 mm) |
| C | Seat height | 24” (600 mm) |
| D | Overall length | 49” (1,250 mm) |
| Footplate height adjustments | ||
| E | High | 15” (380 mm) from seat |
| F | Low | 20” (510 mm) from seat |
| Available seat and overall width | ||
| Variations | G (Seat width)
14” / 350mm* H (Overall width) 25” / 660mm *This seat width is achieved using a 400mm/16” seat width and a set of 25mm/1” padded arm covers. |
|
| Arm height options (from seat cushion) | ||
| I | Low | 6” (160 mm) |
| J | Medium | 7” (185 mm) |
| K | High | 8” (210 mm) |
| Seat depth | ||
| L | 17”- 22” (430-550 mm) | |
| Clearance Height | ||
| M | 5” (130 mm*)
*Height measurements are based on 100mm castors |
|

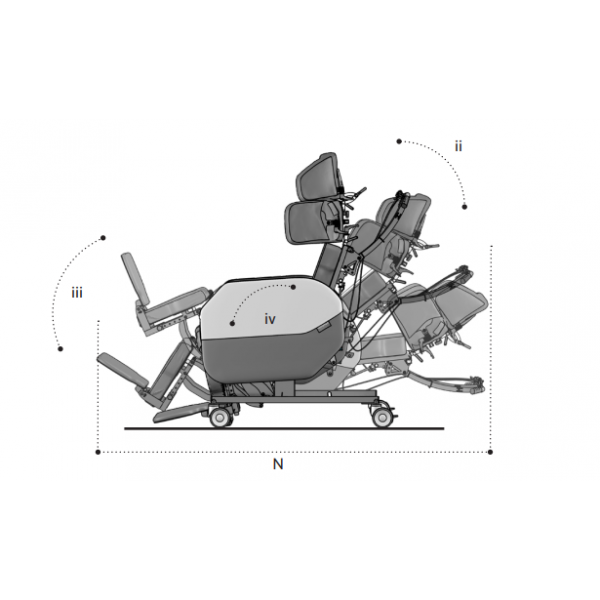

| Recline and tilt angles | ||
| ii | Back angle recline | 90°-130° (40° range) |
| iii | Leg rest angle | 80°-150° (70° range) |
| iv | Tilt-in-space | |
