FREE SHIPPING Arjo, Maxi Twin Compact Floor Lift, KTCB4BSX2WW
Arjo, Maxi Twin Compact Floor Lift, KTCB4BSX2WW
$9,995.00

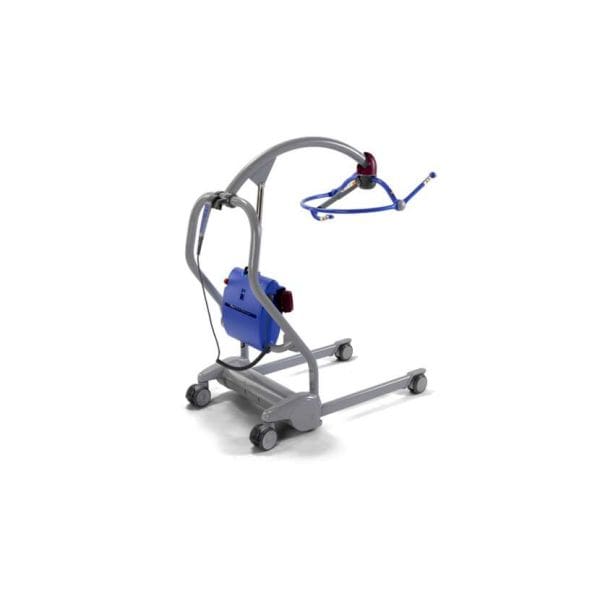

Maxi Twin Compact Floor Lift by Arjo
The Maxi Twin Compact Floor Lift by Arjo provides safe and efficient patient transfers in areas with limited space. Additionally, its compact design allows caregivers to access tight environments without compromising performance.
Care settings often require flexible lifting solutions. Therefore, this compact version of the Maxi Twin helps caregivers manage transfers safely while reducing physical strain.
**Sling Sold Separately
Maxi Twin Compact Floor Lift features:
- Compact design for tight and limited spaces
- Twin-mast system for balanced weight distribution
- High lifting range for floor pick-up
- Powered Dynamic Positioning System (PDPS)
- Suitable for transfers in confined environments
- Supports car transfers (after assessment)
Safe & Flexible Transfers
Caregivers can use the Maxi Twin Compact to transfer patients with limited mobility. For example, it supports movement between:
- Bed
- Chair
- Wheelchair
- Floor
- Vehicle (when appropriate)
Moreover, the compact frame allows better access in smaller rooms. As a result, caregivers can perform transfers more efficiently.
Designed for Limited Spaces
The smaller size improves access in confined care environments. Therefore, it works well in home care, long-term care, and tight clinical settings. In addition, the twin-mast design maintains stability during movement.
Precision & Control
The integrated PDPS system allows caregivers to adjust patient positioning easily. As a result, it reduces manual handling and improves transfer accuracy. In addition, it enhances overall safety for both patients and caregivers.
Specifications:
| Weight and dimensions | |
|---|---|
| Max safe working load kg | 160 kg |
| Max safe working load lb | 350 lb |
| Lifter weight (with spreader bar and battery) kg | 48 kg |
| Lifter weight (with spreader bar and battery) lb | 103 lb |
| Max lifting height mm | 1375 mm |
| Max lifting height in | 54,12 in |
| Min lifting height mm | 290 mm |
| Min lifting height in | 11,4 in |
| Lifting stroke mm | 1080 mm |
| Lifting stroke in | 42,5 in |
| Min total storage height mm | 1125 mm |
| Min total storage height in | 44,25 in |
| External width legs closed mm | 660 mm |
| External width legs closed in | 26 in |
| External width legs open mm | 1105 mm |
| External width legs open in | 43,5 in |
| Internal width leg closed mm | 520 mm |
| Internal width leg closed in | 20,5 in |
| Internal width leg open mm | 965 mm |
| Internal width leg open in | 38 in |
| Leg clearance (floor to top of legs) - standard castors mm | 115 mm |
| Leg clearance (floor to top of legs) - standard castors in | 4,5 in |
| Chassis clearance (floor to bottom of chassis) – standard & low castors mm | 30 mm |
| Chassis clearance (floor to bottom of chassis) – standard & low castors in | 1,25 in |
| Lifter length mm | 1100 mm |
| Lifter length in | 43 in |
| Turning diameter mm | 1310 mm |
| Turning diameter in | 51,5 in |
| Electrical | |
| Lifter protection class | IP24 |
| Hand control protection class | IPX7 |
| Battery | 24V, 2.5 Ah NiMH |
