FREE SHIPPING Arjo, Maxi 500 Floor Lift, KM560
Arjo, Maxi 500 Floor Lift, KM560
$7,650.00

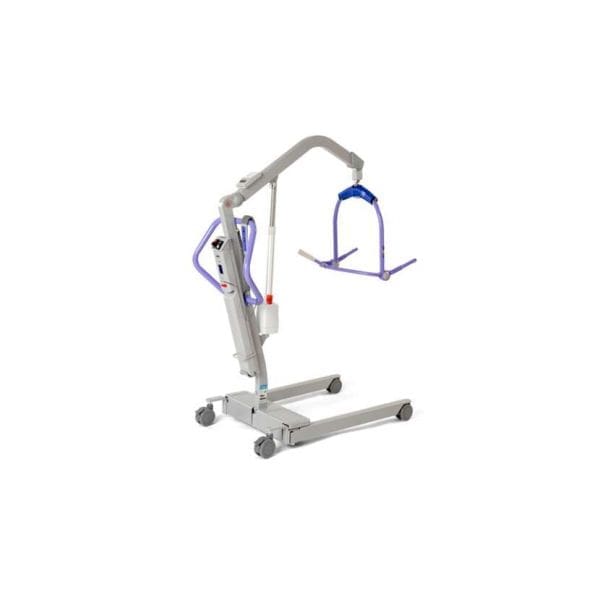

Maxi 500 Floor Lift by Arjo
The Maxi 500 Floor Lift by Arjo helps caregivers safely transfer dependent patients across a range of care environments. Additionally, it supports efficient handling in hospitals, nursing homes, and home care settings.
Caregivers often need reliable lifting solutions. Therefore, this floor lift reduces physical strain while improving patient safety during transfers.
**Sling Sold Separately
Maxi 500 Floor Lift features:
- Safe working load of 500 lb (227 kg)
- Floor lift design for flexible use across care settings
- Compatible with 2-point loop and 4-point DPS spreader bars
- Dual controls on mast and hand control
- Simple and easy-to-use operation
- Optional integrated scale for patient weighing

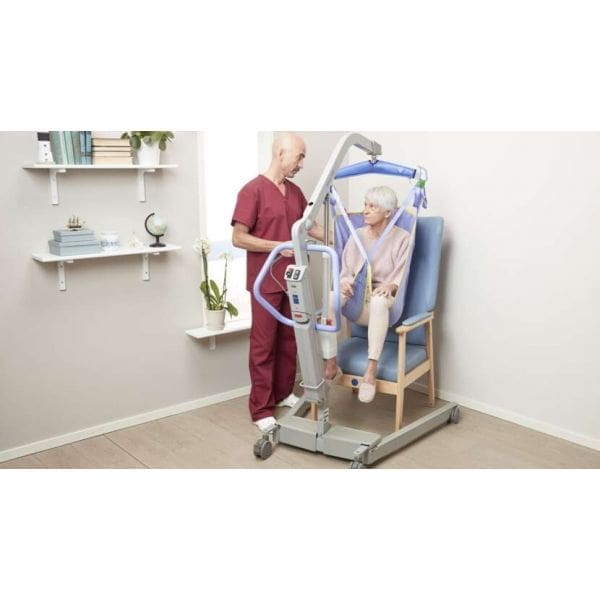

Safe & Efficient Transfers
Caregivers can use the Maxi 500 to transfer patients with limited mobility. For example, it supports movement between:
- Bed
- Chair
- Wheelchair
Moreover, the dual control system allows caregivers to stay close to the patient during operation. As a result, it improves safety and control throughout the transfer.
Flexible & Practical Design
The lift supports different spreader bar configurations. Therefore, it adapts to various patient needs and lifting scenarios. In addition, the simple design makes it easy for caregivers to learn and operate.

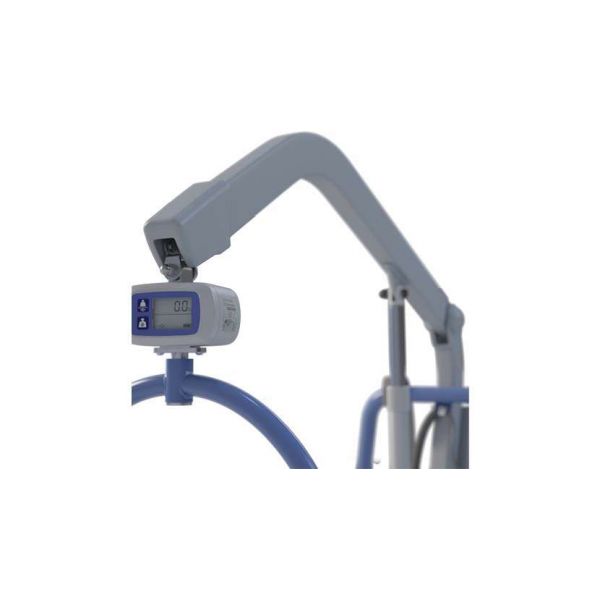

Integrated Weighing Option
The optional scale allows caregivers to weigh patients during transfers. As a result, it eliminates the need for additional movement to a separate scale. In addition, it simplifies daily care routines for both patients and caregivers.
Specifications
| Weight and dimensions | |
|---|---|
| Max safe working load kg | 227 kg |
| Max safe working load lb | 500 lb |
| Lifter weight (with spreader bar and battery) kg | 57 kg |
| Lifter weight (with spreader bar and battery) lb | 126 lb |
| Max lifting height mm | 1860 mm |
| Max lifting height in | 73,25 in |
| Min lifting height mm | 650 mm |
| Min lifting height in | 25,6 in |
| Lifting stroke mm | 1210 mm |
| Lifting stroke in | 47,6 in |
| Min total storage height mm | 1320 mm |
| Min total storage height in | 52 in |
| External width legs closed mm | 680 mm |
| External width legs closed in | 26,75 in |
| External width legs open mm | 1080 mm |
| External width legs open in | 42,5 in |
| Internal width leg closed mm | 550 mm |
| Internal width leg closed in | 21,7 in |
| Internal width leg open mm | 950 mm |
| Internal width leg open in | 37,4 in |
| Leg clearance (floor to top of legs) - standard castors mm | 120 mm |
| Leg clearance (floor to top of legs) - standard castors in | 4,75 in |
| Chassis clearance (floor to bottom of chassis) – standard & low castors mm | 28 mm |
| Chassis clearance (floor to bottom of chassis) – standard & low castors in | 1,12 in |
| Lifter length mm | 1140 mm |
| Lifter length in | 44,9 in |
| Turning diameter mm | 1330 mm |
| Turning diameter in | 55,4 in |
| Electrical | |
| Lifter protection class | IP24 |
| Hand control protection class | IPX7 |
| Battery | 24V 4Ah |
