Arjo, Accessories for Minuet 2 Longterm Care Medical Bed
Arjo, Accessories for Minuet 2 Longterm Care Medical Bed
$3,145.00

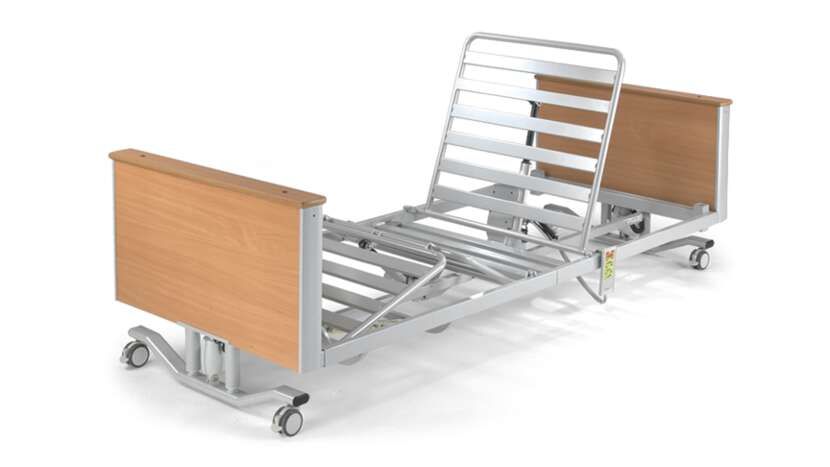

Minuet 2 Longterm Care Medical Bed by Arjo
For use in the long term care setting
Designed for use in residential and convalescent homes and private residences, our range of Minuet 2 community beds provides a real solution for independent living.
Advanced electrical profiling, variable bed height, combined with a domestic appearance makes the Minuet 2 the natural choice for the private, residential and convalescent home user.
To facilitate transport and storage the bed has been designed to be demounted and foldable to minimize space requirements.
Available in:
- No Tilt W/ Extendable Lengths & Integrated Battery
Minuet 2 Long-term Care Medical Bed features:
- Low platform height 10” (250 mm) from the floor.
- Safe working load 396 lbs (180 kg).
- Electric backrest, knee break and height adjustment.
- Pro-Contour advanced profiling for reduced pressure, shear and friction.
- Battery back-up.
- Integrated mattress platform extension of 5 1/4” (130 mm) with mattress retainer.
- Designed for use in private, residential and convalescent homes.
- Easy to disassemble into four parts for improved installation access.
- Compact storage/transportation, using transit brackets.
- Optional foot-down/head-down two-way tilt.
- Wide range of accessories available.
Specifications:
| Angles | |
|---|---|
| Head down tilt | 10.8° |
| Foot down tilt | 10.8° |
| Backrest angle | 69° |
| Thigh angle | 32° |
| Product Specifications | |
| Safe working load kg | 180 kg |
| Safe working load lb | 396 lb |
| Maximum patient weight kg | 145 kg |
| Maximum patient weight lb | 319 lb |
| Mattress thickness mm | 125 mm |
| Mattress thickness in | 5 in |
| Dimensions | |
| Overall standard length (HOD) mm | 2250 mm |
| Overall standard length (HOD) in | 88,6 in |
| Overall standard height (HOB) mm | 1050 mm |
| Overall standard height (HOB) in | 41,3 in |
| Overall width mm | 1980 mm |
| Overall width in | 78 in |
| Mattress width standard mm | 860 mm |
| Mattress width standard in | 33,8 in |
| Top height (with 125 mm castors) mm | 660 mm |
| Top height (with 125 mm castors) in | 26in |
| Low height (with 125 mm castors) mm | 250 mm |
| Low height (with 125 mm castors) in | 9,8 in |
| Overall standard width (without safety sides) (HOB) mm | 940 mm |
| Overall standard width (without safety sides) (HOB) in | 37 in |
| Mattress thickness standard mm | 125 mm |
| Mattress thickness standard in | 5 in |
| Electrical | |
| Ingress protection | IP24 |
| Shock protection | Class II, Type B |
| Power in (230V) | 1A Max 230 V |
| Power in (120V) | 1.7 A Max 120V |
| Power in (60Hz) | 50-60Hz |
| Backup battery | 12 V, 1.2 Ah sealed rechargeable lead/acid gel |
